Yamaha — vmax - f275b / f275bet1l

Exploded diagrams and part specifications.

1VMAX Upper Casing 2VMAX Intake 1 3VMAX Intake 2 4VMAX Electrical 1 5VMAX Electrical 2 6VMAX Electrical 3 7VMAX Electrical 4 8VMAX Electrical 5 9VMAX Oil Pan 10VMAX Optional Parts 11VMAX Crankshaft & Piston 12VMAX Control 13VMAX Cylinder & Crankcase 1 14VMAX Cylinder & Crankcase 2 15VMAX Cylinder & Crankcase 3 16VMAX Cylinder & Crankcase 4 17VMAX Switch & Panel 18VMAX Starting Motor 19VMAX Steering Guide 20VMAX Throttle Body Assembly 1 21VMAX Throttle Body Assembly 2 22VMAX Generator 23VMAX Periodic Maintenance Parts 24VMAX Top Cowling 25VMAX Valve 26VMAX Power Trim & Tilt Assembly 1 27VMAX Power Trim & Tilt Assembly 2 28VMAX Fuel 29VMAX Fuel Injection Pump 30VMAX Fuel Tank 31VMAX Bracket 1 32VMAX Bracket 2 33VMAX Bracket 3 34VMAX Bottom Cowling 1 35VMAX Bottom Cowling 2 36VMAX Bottom Cowling 3 37VMAX Meter 38VMAX Repair Kit 1 39VMAX Repair Kit 2 40VMAX Remote Control Assembly 41VMAX Remote Control Box 42VMAX Lower Casing & Drive 1 43VMAX Lower Casing & Drive 2

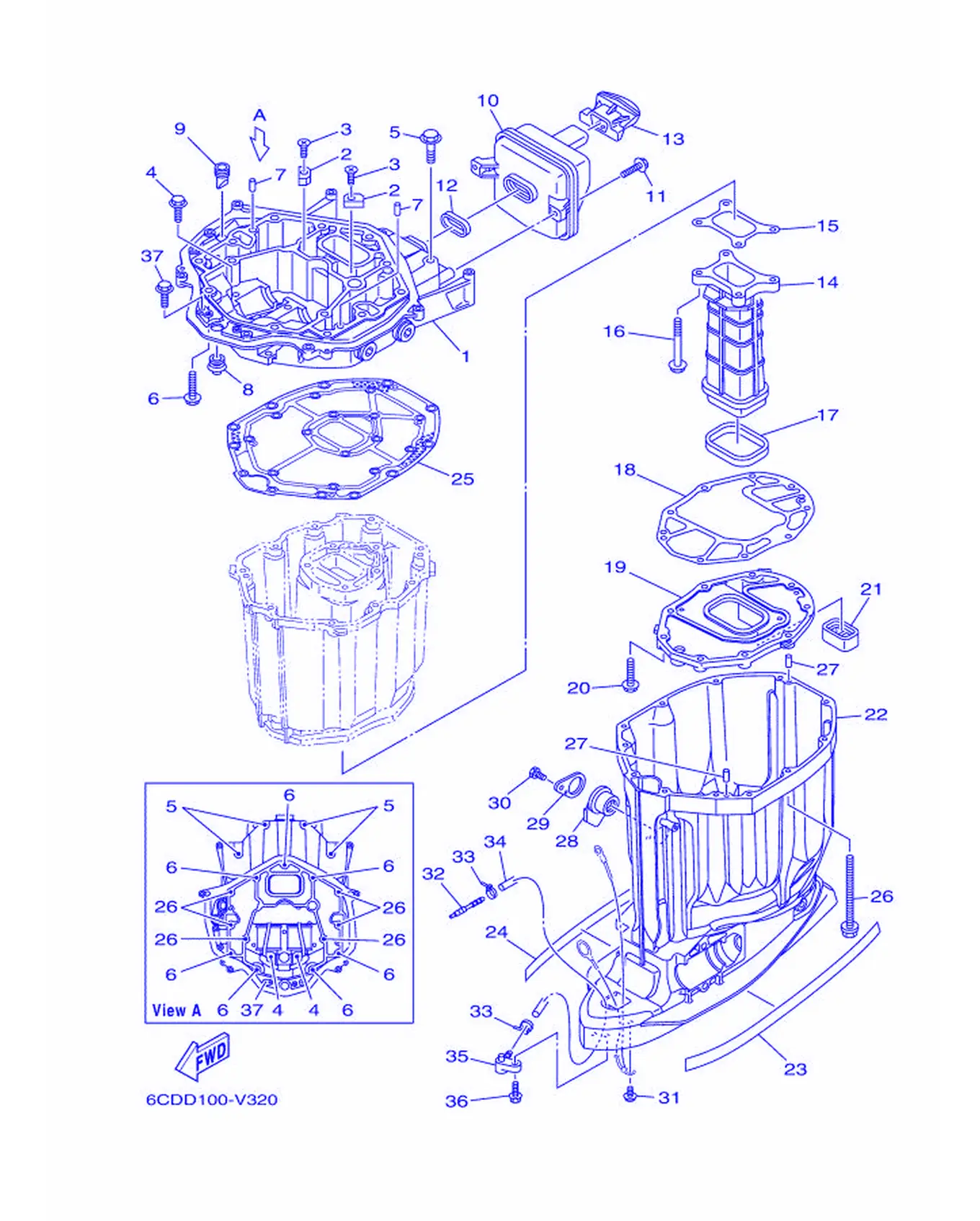

Fig. 1VMAX Upper Casing

REF	Part No.	Name	Qty
1	6CE-41137-01	Guide, Exhaust	1
2	63P-11325-11	Anode	2
3	90151-06M02	Screw, Countersunk	2
4	90119-08182	Bolt, with Washer	2
5	97E75-10545	Bolt, Hexagon with Washer Deep Recess	4
6	97E75-10535	Bolt, Hexagon with Washer Deep Recess	7
7	93608-16M16	Pin, Dowel	2
8	6E5-42724-01	Grommet	1
9	61A-42717-00	Rubber,Seal 2	1
10	6CB-14750-A0	Silencer Assembly	1
11	95D95-06020	Bolt, Flange Deep Recess	2
12	6CB-14755-01	Gasket, Silencer	1
13	6CB-42769-02	Seal, Rubber	1
14	6CB-41132-01	Manifold, Exhaust	1
15	6CB-41134-00	Gasket, Exhaust Manifold 2	1
16	97E75-08560	Bolt, Hexagon with Washer Deep Recess	4
17	6CB-41138-00	Seal, Exhaust 1	1
18	6CB-41135-00	Gasket, Exhaust Manifold	1
19	6CB-45181-00-CA	Plate	1
20	97E75-08535	Bolt, Hexagon with Washer Deep Recess	9
21	6CB-45127-01	Seal	1
22	6CB-45111-00-8D	Casing, Upper	1
23	6CB-42791-00	Mark 1	1
24	6CB-42792-00	Mark 2	1
25	6CB-45113-10	Gasket, Upper Casing	1
26	90119-10007	Bolt, With Washer	6
27	93608-16M16	Pin, Dowel	2
28	6BB-15316-01	Damper 1	1
29	6BB-45152-01	Cover, Upper Casing 2	1
30	97D95-06012	Bolt, Hexagon Deep Recess	1
31	95D95-06010	Bolt, Flange Deep Recess	1
32	6E5-83558-00	End, Nipple	1
33	90465-11M10	Clamp	2
34	90445-07012	Hose (L1457)	1
35	63P-45379-00	Nipple,Hose	1
36	90119-06287	Bolt, with Washer	1
37	95D95-06014	Bolt, Flange Deep Recess	1

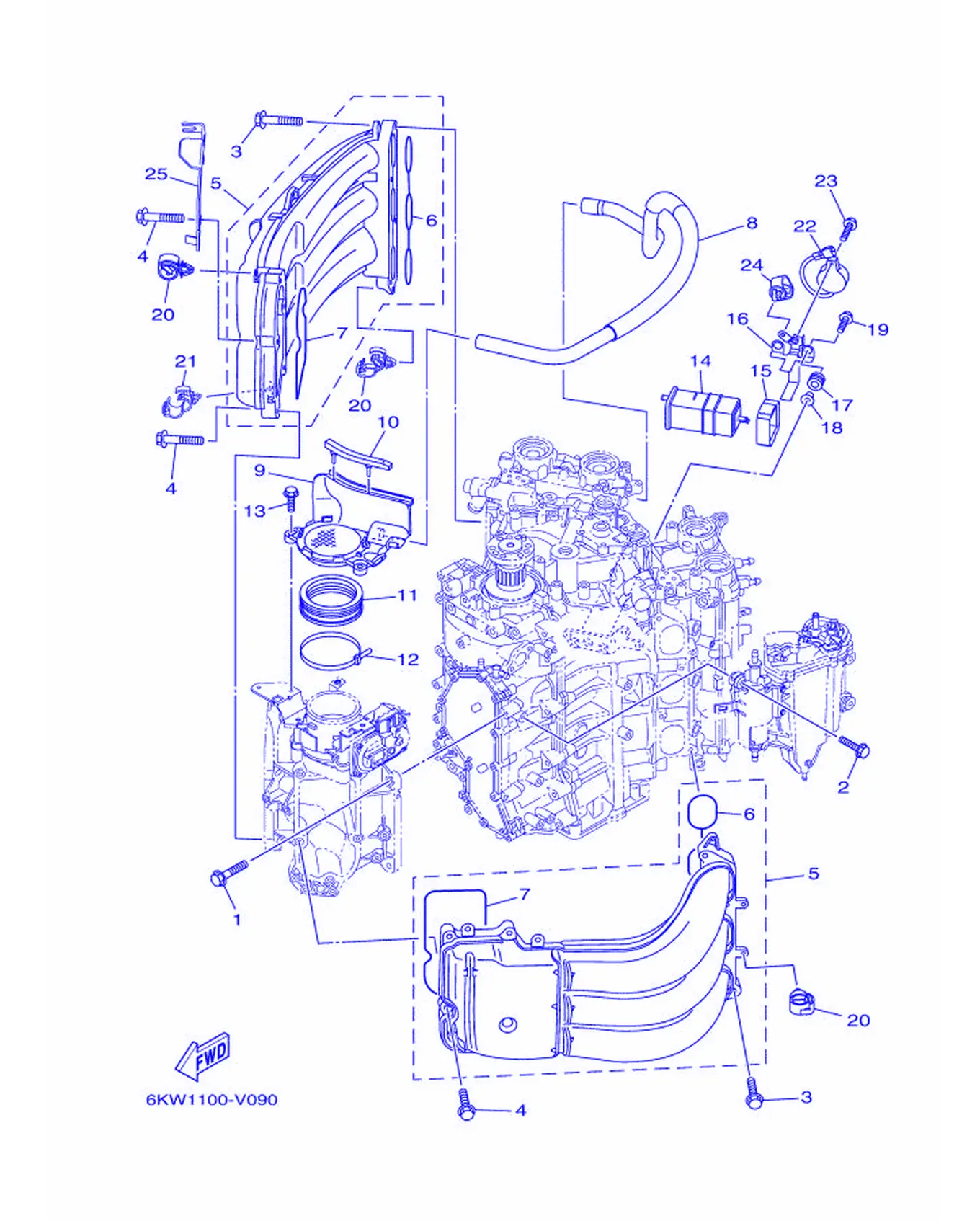

Fig. 2VMAX Intake 1

REF	Part No.	Name	Qty
1	95D75-08030	Bolt, Flange Deep Recess	4
2	90119-06299	Bolt, with Washer	4
3	90119-08020	Bolt, With Washer	8
4	90105-06035	Bolt, Flange	10
5	6CB-13641-00	Manifold, Intake 1	2
6	6CB-13645-00	Gasket, Manifold 1	1
7	6CB-13646-00	Gasket, Manifold 2	1
8	6CB-15373-01	Pipe, Breather	1
9	6CB-14440-01	Silencer Assembly, Intake	1
10	6CB-85547-00	Damper	1
11	6AW-1441J-01	Pipe, Silencer	1
12	90464-99004	Clamp	1
13	95D95-06025	Bolt, Flange Deep Recess	2
14	69J-24170-00	Canister Assembly	1
15	6FP-2419E-01	Cover, Canister	1
16	6KA-2134X-00	Bracket, Canister	1
17	90480-10M23	Grommet	2
18	90387-06289	Color	2
19	90119-06309	Bolt, with Washer	2
20	90464-13249	Clamp	8
21	90464-07209	Clamp	1
22	6KA-83383-01	Buzzer	1
23	90119-05M04	Bolt, With Washer	1
24	90464-13249	Clamp	1
25	6KW-82389-00	Plate 2	1

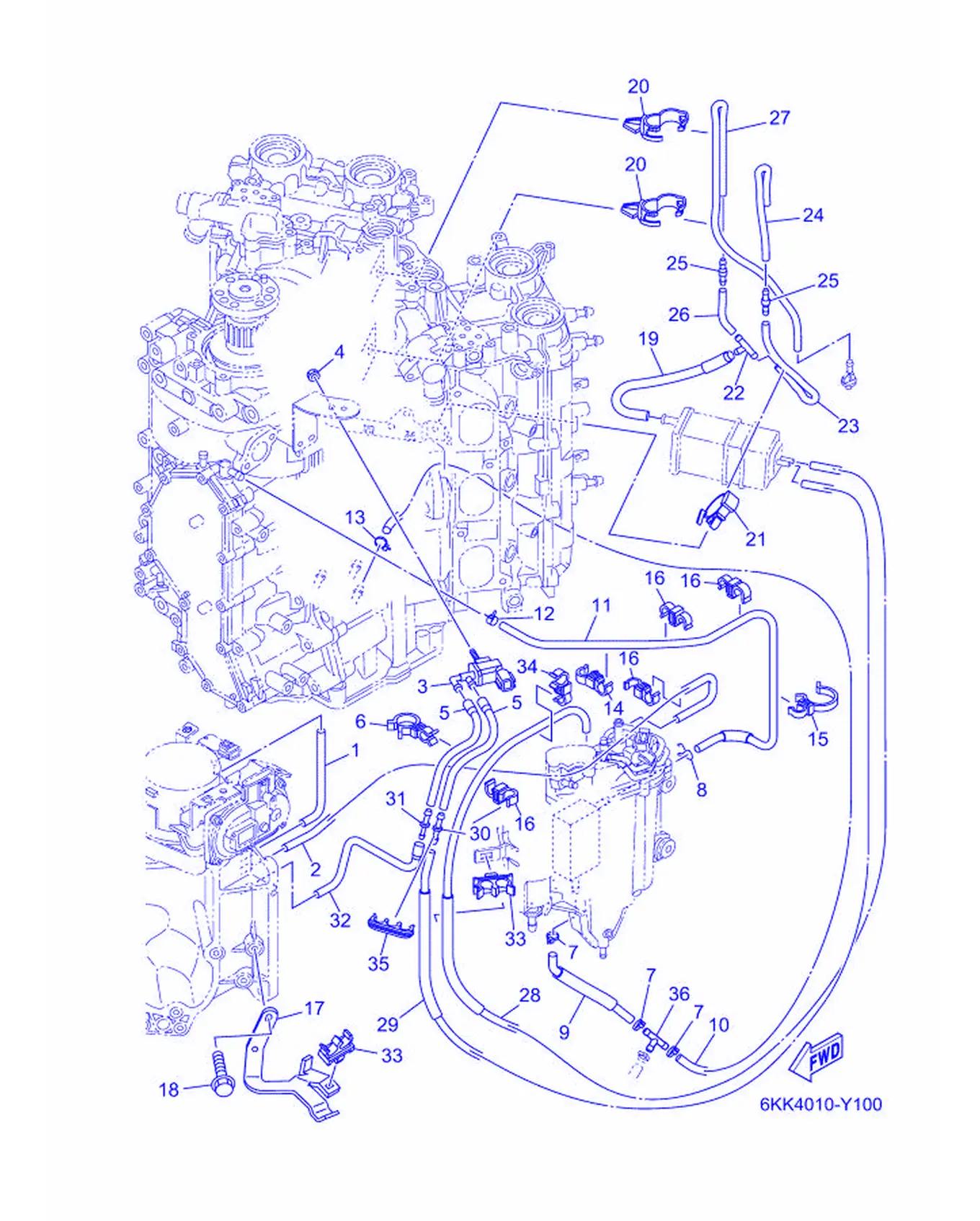

Fig. 3VMAX Intake 2

REF	Part No.	Name	Qty
1	6CB-13533-00	Hose, Vacuum Sensing 4	1
2	6CB-13532-10	Hose, Vacuum Sensing 3	1
3	6C5-86120-00	SolenoidValveAssembly	1
4	95380-06600	Nut, Hexagon	1
5	6CB-2416A-00	Hose	2
6	90464-23001	Clamp	2
7	90465-11M10	Clamp	3
8	90467-09M09	Clip	1
9	6CE-12482-10	Pipe 2	1
10	90445-097F7	Hose (L780)	1
11	6CB-12484-10	Pipe 4	1
12	90467-090A0	Clip	1
13	90465-11M10	Clamp	1
14	90464-12010	Clamp	1
15	90464-26002	Clamp	1
16	90464-09013	Clamp	4
17	6CB-13782-00	Stay	1
18	95D95-06016	Bolt, Flange Deep Recess	2
19	6CB-13545-00	Hose 1	1
20	90464-20181	Clamp	2
21	90464-07209	Clamp	1
22	688-24378-00	Pipe,Joint	1
23	6CB-13546-01	Hose 2	1
24	6CB-13547-00	Hose 3	1
25	6E5-21744-00	Breather	2
26	6CB-13548-00	Hose, Air 4	1
27	6KA-12483-00	Pipe 3	1
28	6CB-1475A-00	Pipe 1	1
29	6CB-1475F-00	Pipe 3	1
30	6G8-24376-00	Pipe,Joint 1	1
31	6EK-14989-00	Orifice, Air Vent	1
32	6CB-1475G-10	Pipe 4	1
33	90464-11012	Clamp	2
34	90464-12010	Clamp	1
35	90464-10011	Clamp	1
36	688-24378-00	Pipe,Joint	1

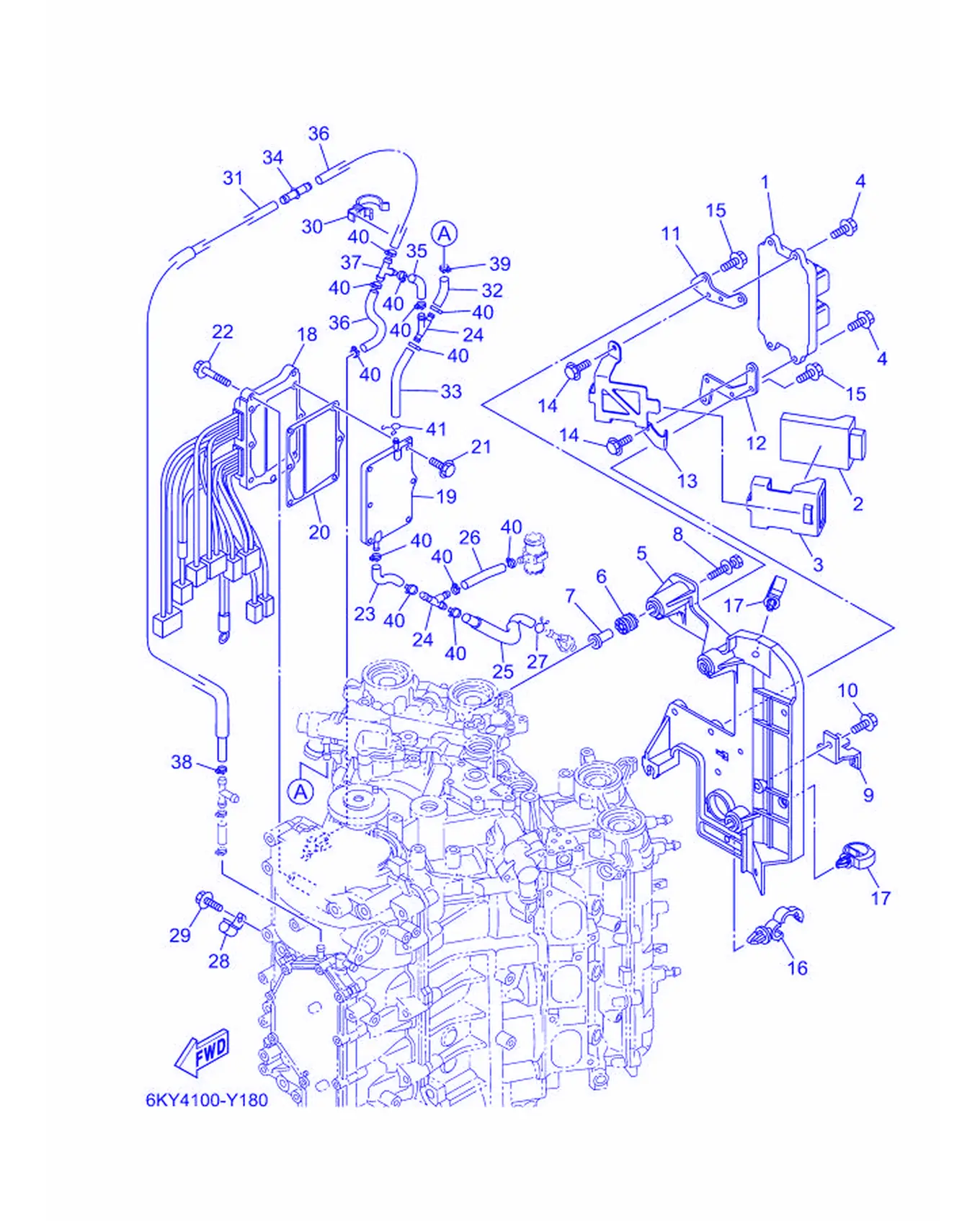

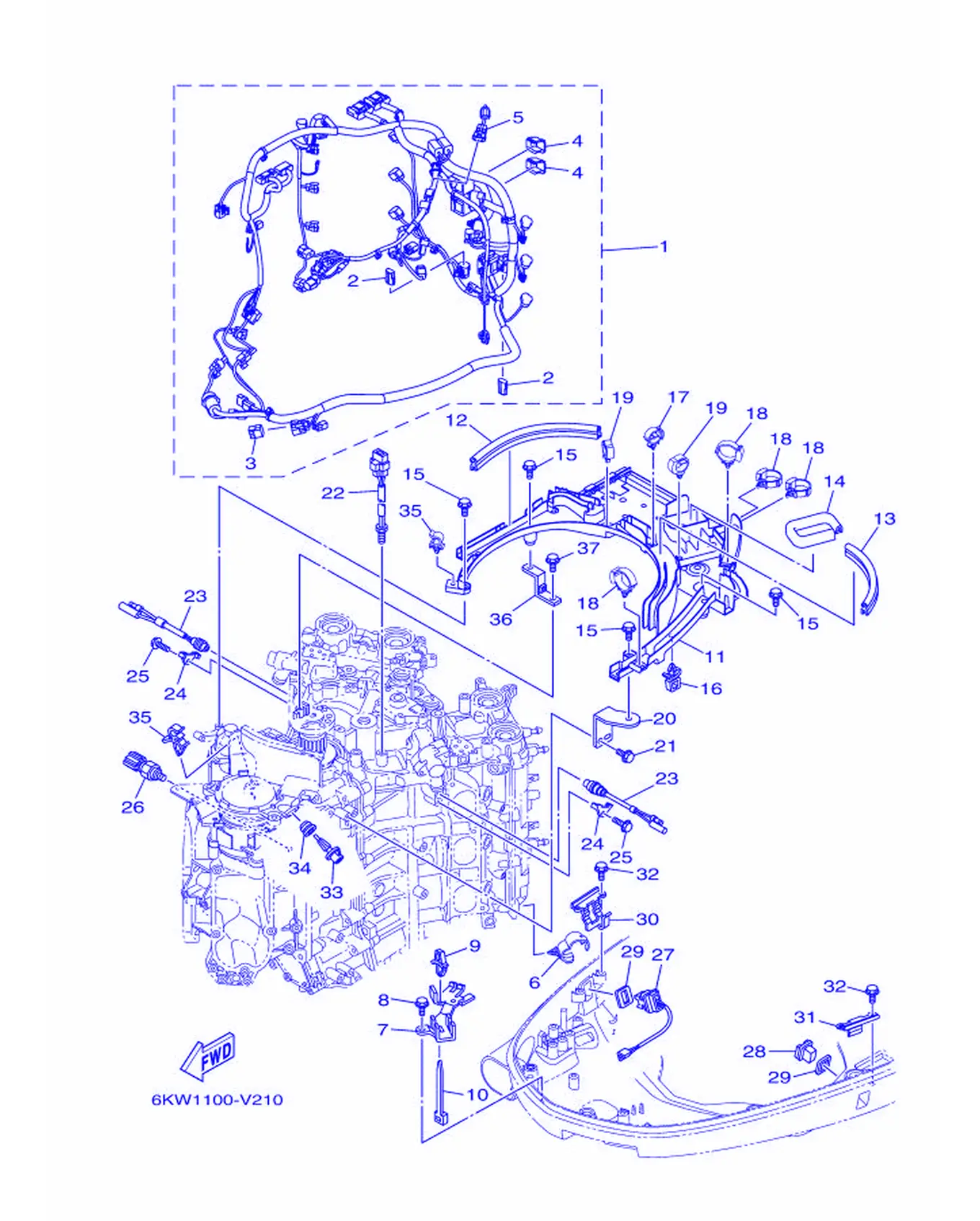

Fig. 4VMAX Electrical 1

REF	Part No.	Name	Qty
1	6KW-8591A-03	Engine Control Unit Assembly	1
2	6KW-85335-00	Adapter, Interface	1
3	6KW-85546-00	Band	1
4	95D95-06016	Bolt, Flange Deep Recess	4
5	6CB-82316-01	Bracket, Ignition Coil	1
6	64J-85516-01	Spacer	4
7	69M-42758-01	Color	4
8	90119-06293	Bolt, with Washer	4
9	6BR-81845-00	Plate	1
10	95D95-06012	Bolt, Flange Deep Recess	1
11	6KW-81411-00	Base, Plate 1	1
12	6KW-81411-10	Base, Plate 1	1
13	6KW-81412-00	Base, Plate 2	1
14	95D95-06012	Bolt, Flange Deep Recess	2
15	95D95-06012	Bolt, Flange Deep Recess	4
16	90464-13249	Clamp	1
17	90464-20181	Clamp	2
18	6CE-81960-10	Rectifier and Regulator Assembly	1
19	6CE-81972-00-9S	Cover, Rectifier	1
20	6CE-81975-00	Rectifier Fitting Plate	1
21	90119-06MA3	Bolt, With Washer	6
22	95D95-06025	Bolt, Flange Deep Recess	3
23	6CE-1248A-00	Pipe 8	1
24	6CE-24377-00	Pipe, Joint 2	2
25	6CE-12483-00	Pipe 3	1
26	90445-107A5	Hose (L30)	1
27	90467-09M09	Clip	1
28	90462-06013	Clamp	1
29	95023-06012	Bolt, Flange	1
30	90464-26002	Clamp	1
31	6CE-12481-10	Pipe 1	1
32	6CE-14872-00	Pipe 2	1
33	6CE-12485-00	Pipe 5	1
34	6CE-24376-01	Pipe, Joint 1	1
35	6CE-14872-00	Pipe 2	1
36	90445-09068	Hose	2
37	688-24378-00	Pipe,Joint	1
38	90465-11M10	Clamp	1
39	90465-11M10	Clamp	1
40	90465-11M10	Clamp	12
41	90467-08M18	Clip	1

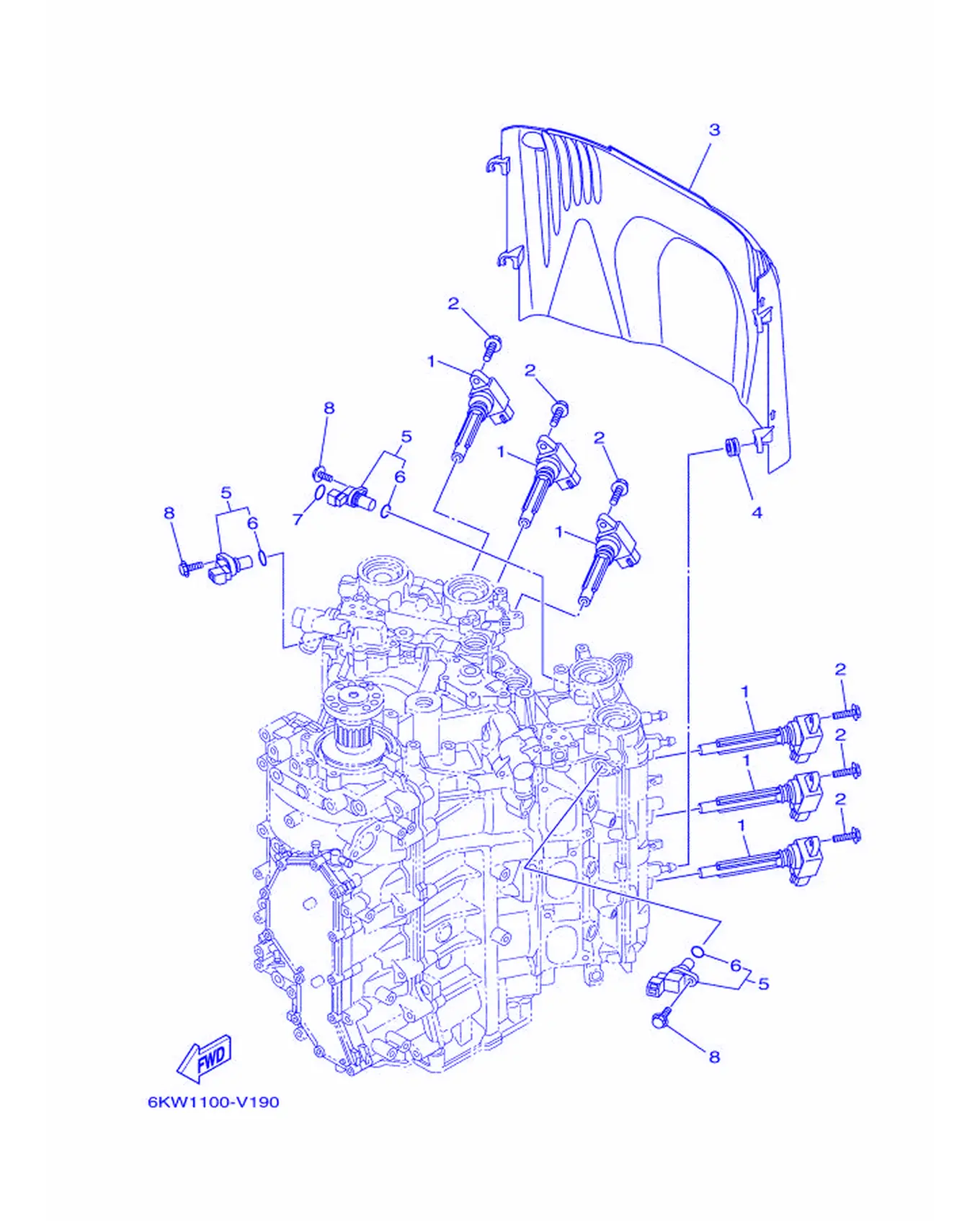

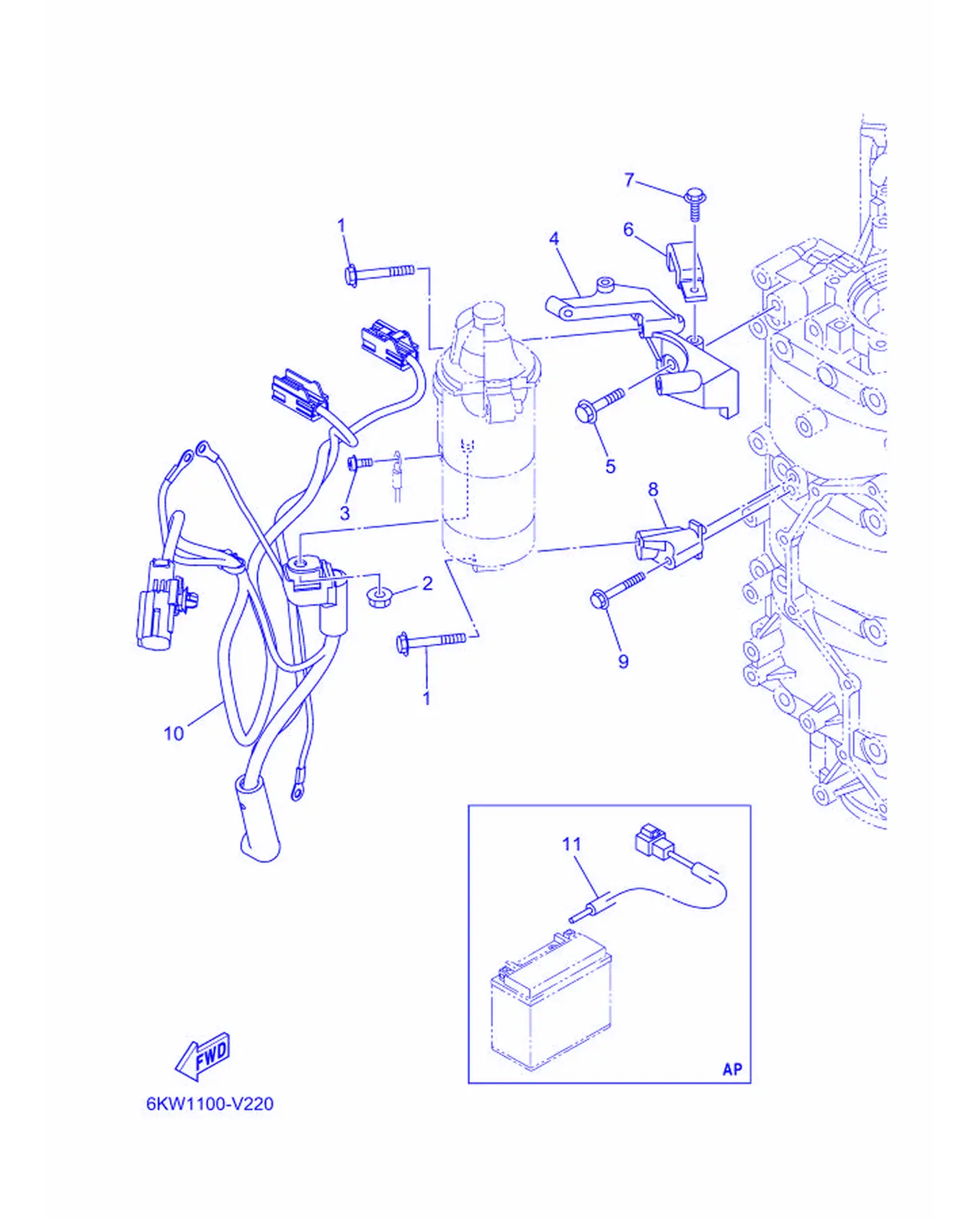

Fig. 5VMAX Electrical 2

REF	Part No.	Name	Qty
1	6CB-82310-02	Ignition Coil Assembly	6
2	95D95-06025	Bolt, Flange Deep Recess	6
3	6KW-82314-00	Cover, Ignition Coil	1
4	90480-12314	Grommet	4
5	6P2-85896-00	Sensor, Cam Position	3
6	6P2-85075-00	O-ring	1
7	93210-11001	O-ring	1
8	97E95-06520	Bolt, Hexagon with Washer Deep Recess	3

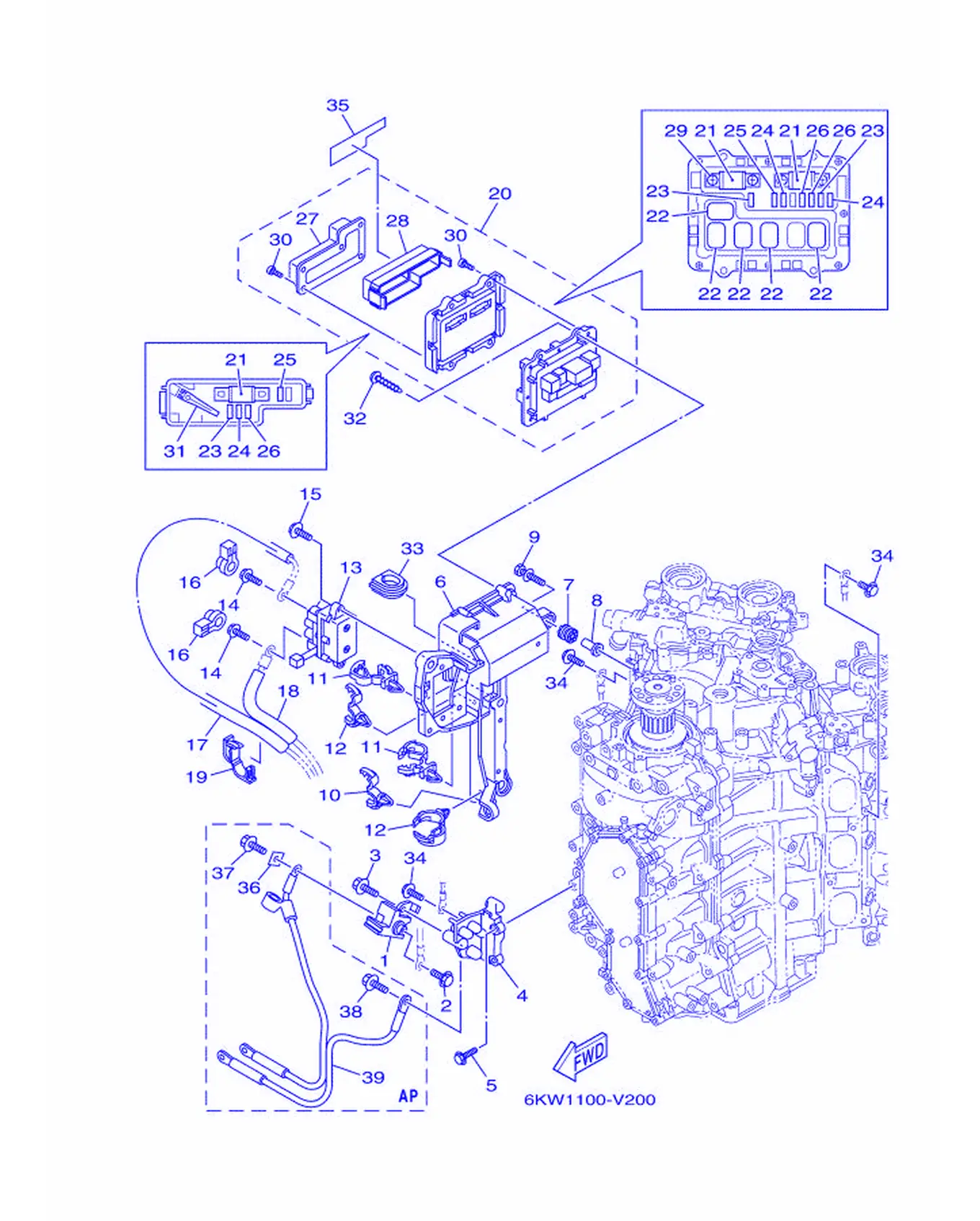

Fig. 6VMAX Electrical 3

REF	Part No.	Name	Qty
1	6P2-81925-01	Terminal	1
2	95D95-08016	Bolt, Flange Deep Recess	1
3	95814-08020	Bolt, Flange	1
4	6CB-81929-00	Bracket, Terminal	1
5	95D95-06020	Bolt, Flange Deep Recess	2
6	6CB-81948-02	Bracket	1
7	64J-85516-01	Spacer	5
8	69M-42758-01	Color	5
9	90119-06293	Bolt, with Washer	5
10	90464-13249	Clamp	1
11	90464-12183	Clamp	2
12	90464-20181	Clamp	2
13	63P-W8195-00	Relay Assembly	1
14	97E95-06610	Bolt, Hexagon with Washer Deep Recess	2
15	97513-06520	Bolt, With Washer	2
16	6P2-8183X-00	Cap, Terminal	2
17	90446-15005	Hose (L200)	1
18	90446-15M07	Hose (L60)	1
19	90464-18004	Clamp	1
20	6CE-82170-11	Fuse Box Assembly	1
21	6CE-82151-00	Fuse (100A)	3
22	6AW-8195A-00	Relay Assembly	5
23	67F-82151-40	Fuse (10A)	3
24	67F-82151-50	Fuse (15A)	3
25	67F-82151-00	Fuse (20A)	2
26	67F-82151-10	Fuse (30A)	3
27	6CB-81639-10	Cover	1
28	6CB-85544-00	Case	1
29	68F-82846-00	Screw, Pan Head (M5)	4
30	6P2-82113-00	Screw (M3)	13
31	67F-2812A-00	Puller, Fuse	1
32	97780-50620	Screw, Tapping	4
33	6P2-81336-01	Grommet	1
34	97E95-06516	Bolt, Hexagon with Washer Deep Recess	5
35	6KW-81919-00	Graphic, Regulator	1
36	6CB-81923-00	Washer	1
37	95D95-08016	Bolt, Flange Deep Recess	1
38	95D95-08016	Bolt, Flange Deep Recess	1
39	6CE-82105-J3	Battery Cable	1

Fig. 7VMAX Electrical 4

REF	Part No.	Name	Qty
1	6KW-82590-03	Wire Harness Assembly	1
2	6AW-82582-00	Cap 1	2
3	6Y8-82582-11	Cap 1 (4 Pin)	1
4	6EM-82599-00	Cover, Connector	2
5	6FM-81980-01	Diode Assembly	1
6	90464-20181	Clamp	4
7	6CB-82594-00	Clamp	1
8	95D95-06012	Bolt, Flange Deep Recess	2
9	90464-06001	Clamp	1
10	90465-13M24	Clamp	1
11	6CB-82589-01	Wire Harness Protector	1
12	6BG-42617-00	Damper, Foam	1
13	6CB-42617-00	Damper, Foam	1
14	6CB-42629-00	Seal	1
15	95D95-06020	Bolt, Flange Deep Recess	5
16	90464-11121	Clamp	1
17	90464-18246	Clamp	1
18	90464-12183	Clamp	4
19	90464-20181	Clamp	2
20	6CB-82388-00	Plate	1
21	95D95-06016	Bolt, Flange Deep Recess	2
22	6CB-85790-00	Thermo Sensor Assembly	1
23	6P2-82560-01	Thermo Switch Assembly	2
24	6E9-82588-00	Plate	2
25	95D95-06012	Bolt, Flange Deep Recess	2
26	6AW-83651-01	Sender, Oil Pressure	1
27	69J-82563-01	Trim & Tilt Switch Assembly	1
28	69J-42723-01	Cover, Bottom	1
29	69J-82587-01	Gasket	2
30	63P-83614-01	Bracket	1
31	6DA-83614-00	Bracket	1
32	95D95-06012	Bolt, Flange Deep Recess	4
33	63P-85886-00	Sensor, Air Temperature	1
34	6CE-14435-00	Grommet	1
35	90464-09129	Clamp	2
36	6CB-81952-00	Holder, Relay	1
37	95D95-06016	Bolt, Flange Deep Recess	1

Fig. 8VMAX Electrical 5

REF	Part No.	Name	Qty
1	97513-08545	Bolt, with Washer	3
2	90179-08003	Nut	1
3	97985-04308	Screw, Washer	1
4	6CB-81822-02	Bracket, Starting Motor	1
5	90105-08M87	Bolt, Flange	2
6	6CB-81443-00	Clamp, Lead 1	1
7	95D95-06016	Bolt, Flange Deep Recess	1
8	6CB-81823-A0	Stay, Starting Motor	1
9	90105-06151	Bolt, Flange	1
10	6KW-8259M-00	Wire Harness Assembly 2	1
11	6KW-81949-00	Wire, Lead (Isolator, 3.8M)	1

Fig. 9VMAX Oil Pan

REF	Part No.	Name	Qty
1	6CB-15311-01	Oil Pan	1
2	97E75-08535	Bolt, Hexagon with Washer Deep Recess	10
3	93608-16M16	Pin, Dowel	2
4	90340-14M06	Plug, Straight Screw	1
5	90430-14M09	Gasket	1
6	6CB-13411-00	Strainer, Oil	1
7	6AW-13415-00	Seal, Oil Strainer	1
8	95812-06025	Bolt, Flange	3
9	6CB-13300-00	Oil Pump Assembly	1
10	6CB-13329-00	Gasket, Pump Cover	1
11	6AW-13119-00	Oil Seal	1
12	69J-13631-00	Oil Seal	2
13	6CB-11355-00	Seal, Cylinder 1	1
14	95D75-06040	Bolt, Flange Deep Recess	4
15	93210-26658	O-ring	2
16	6CB-13490-00	Relief Valve Assembly	1
17	6CB-13473-00	O-ring	1
18	6CB-15362-00	Plug, Oil Level	1
19	6CB-15377-00	Guide, Inlet	1
20	93210-19MJ3	O-ring	1
21	95D95-06016	Bolt, Flange Deep Recess	2

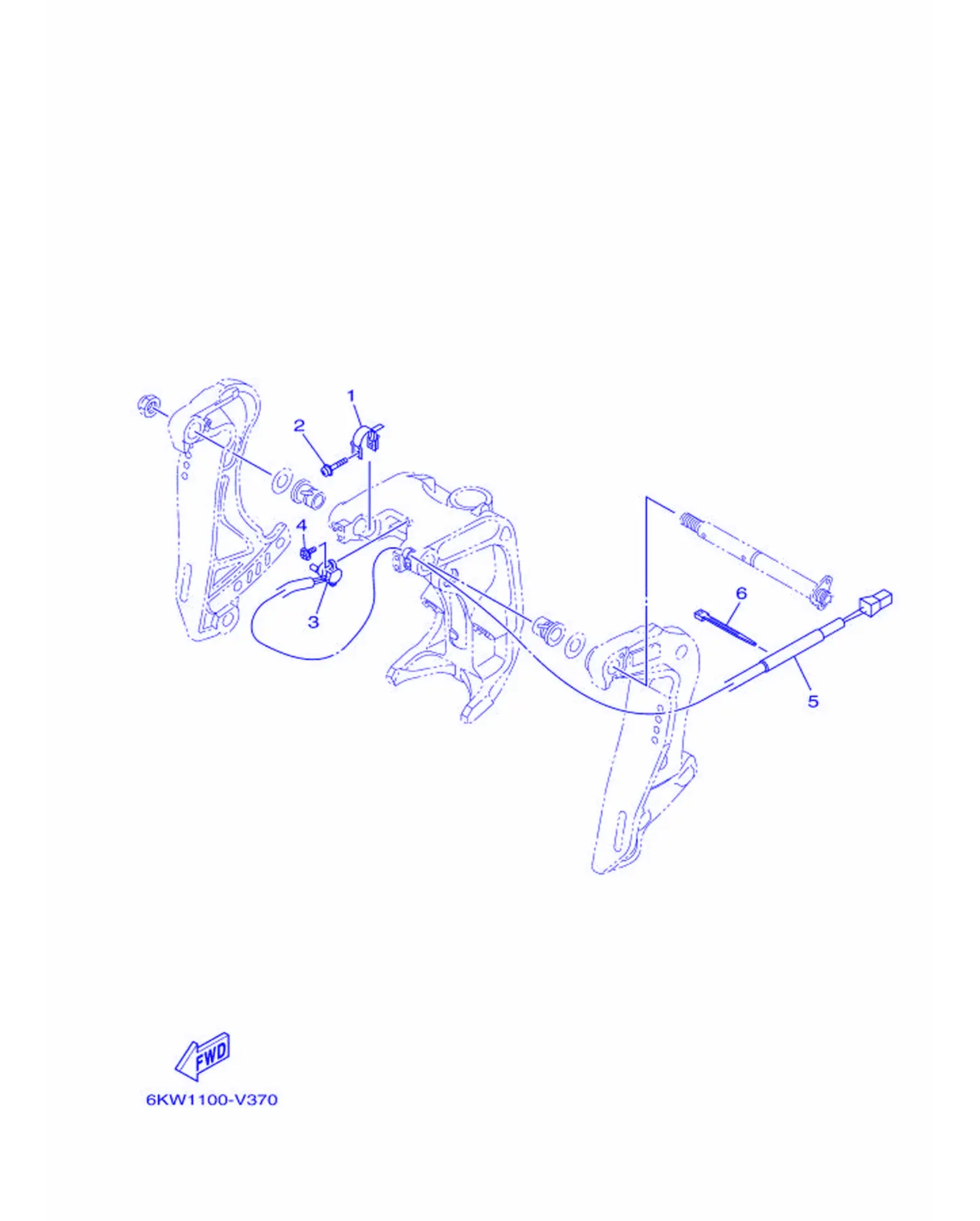

Fig. 10VMAX Optional Parts

REF	Part No.	Name	Qty
1	64E-43139-11	Cam, Trim Sender	1
2	90159-05059	Screw, With Washer	1
3	67H-83672-02	Trim Sender	1
4	97985-06216	Screw, With Washer	2
5	90446-15003	Hose (L100)	1
6	90465-11M10	Clamp	6

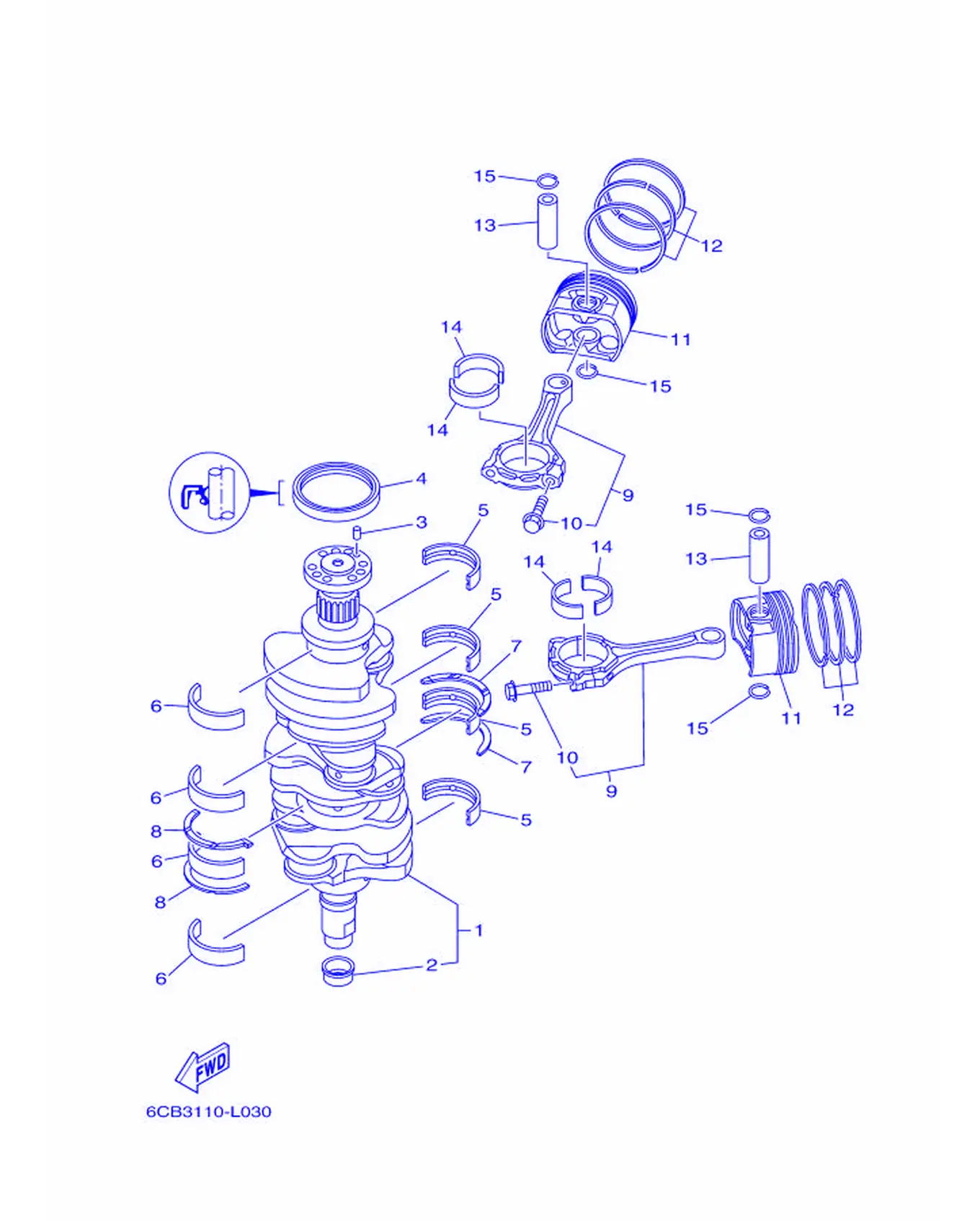

Fig. 11VMAX Crankshaft & Piston

VMAX 曲轴与活塞 VMAX Crankshaft & Piston Fig.

REF	Part No.	Name	Qty
1	6CB-11410-00	Crankshaft	1
2	6CB-11478-00	Collar	1
3	93606-12019	Pin, Dowel	1
4	93102-85008	Oil Seal	1
5	6CB-11416-00	Crankshaft Plain Bearing 1	4
5	6CB-11416-10	Crankshaft Plain Bearing 1	4
5	6CB-11416-20	Crankshaft Plain Bearing 1	4
5	6CB-11416-30	Crankshaft Plain Bearing 1	4
5	6CB-11416-40	Crankshaft Plain Bearing 1	4
6	6CB-11417-00	Crankshaft Plain Bearing 2	4
6	6CB-11417-10	Crankshaft Plain Bearing 2	4
6	6CB-11417-20	Crankshaft Plain Bearing 2	4
6	6CB-11417-30	Crankshaft Plain Bearing 2	4
6	6CB-11417-40	Crankshaft Plain Bearing 2	4
7	6CB-11426-03	Bearing, Thrust 1	2
8	6CB-11427-03	Bearing, Thrust 2	2
9	6CB-W1165-10	Connecting Rod Assembly	6
10	63P-11654-10	Bolt, Connecting Rod	2
11	6CE-11631-02	Piston (STD)	6
12	6CB-11603-00	Piston Ring Set (STD)	6
13	6CB-11633-00	Pin, Piston	6
14	6JD-11656-00	Connecting Rod Plain Bearing	12
14	6JD-11656-10	Connecting Rod Plain Bearing	12
14	6JD-11656-20	Connecting Rod Plain Bearing	12
15	K0F-A3233-00	Ring, Hole Snap	12

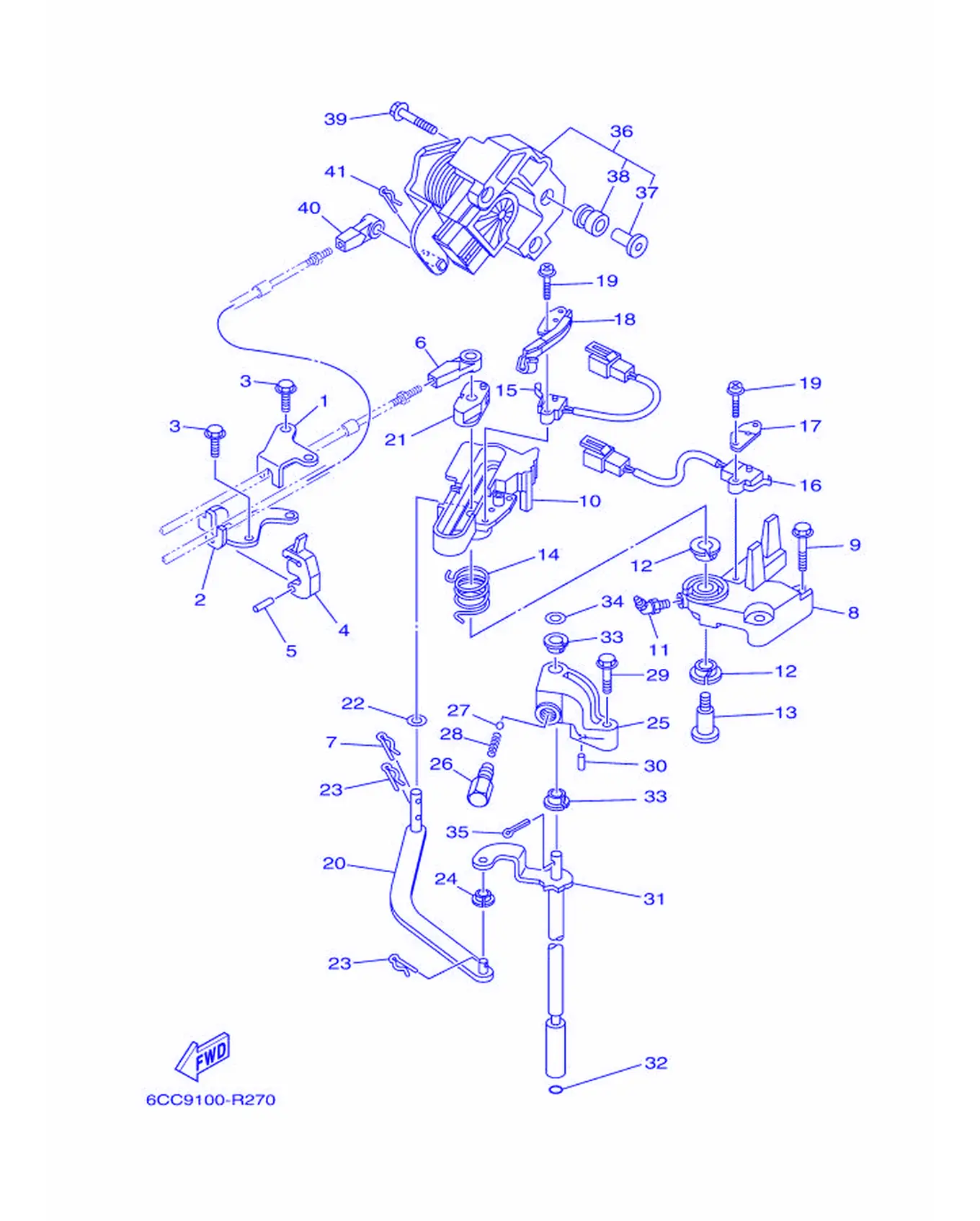

Fig. 12VMAX Control

REF	Part No.	Name	Qty
1	6CB-48531-00	Bracket, Remote Control 1	1
2	6CB-48532-00	Bracket, Remote Control 2	1
3	97E95-06516	Bolt, Hexagon with Washer Deep Recess	4
4	6E5-48538-00	Clamp, Cable 1	1
5	91690-30010	Pin,Spring	1
6	6E5-48344-00	Cable End, Remote Control	1
7	90468-18008	Clip	1
8	6CB-44117-00	Bracket	1
9	95D95-06035	Bolt, Flange Deep Recess	2
10	69J-44176-01	Bracket	1
11	93700-06M01	Nipple, Grease	1
12	90386-12069	Bushing	2
13	90109-08019	Bolt	1
14	90508-20052	Spring, Torsion	1
15	60V-8259F-01	Switch Assembly	1
16	69J-8259F-00	SwitchAssembly	1
17	61A-82588-01	Plate	1
18	6CB-82588-00	Plate	1
19	97985-04116	Screw, With Washer	4
20	6CB-44121-00	Lever, Shift Rod	1
21	69J-44122-00	Bushing, Shift Rod Lever	1
22	90202-08M20	Washer,Plate	1
23	90468-18008	Clip	2
24	90386-06M12	Bushing	1
25	69J-44118-00	Bracket	1
26	648-42715-00	Bushing	1
27	93501-04M02	Ball	1
28	90501-12082	Spring, Compression	1
29	97E75-06535	Bolt, Hexagon with Washer Deep Recess	1
30	91690-30010	Pin,Spring	1
31	6CB-44120-02	Handle Gear Shift Assembly	1
32	93210-09165	O-ring	1
33	90386-90M90	Bushing	2
34	90201-09M02	Washer,Plate	1
35	91490-20015	Pin, Cotter	1
36	6CB-8A410-11	Sensor Unit	1
37	6P2-44139-00	Collar	3
38	6CB-41273-00	Grommet	3
39	90119-06297	Bolt, with Washer	3
40	6E5-48344-00	Cable End, Remote Control	1
41	90468-18008	Clip	1

Fig. 13VMAX Cylinder & Crankcase 1

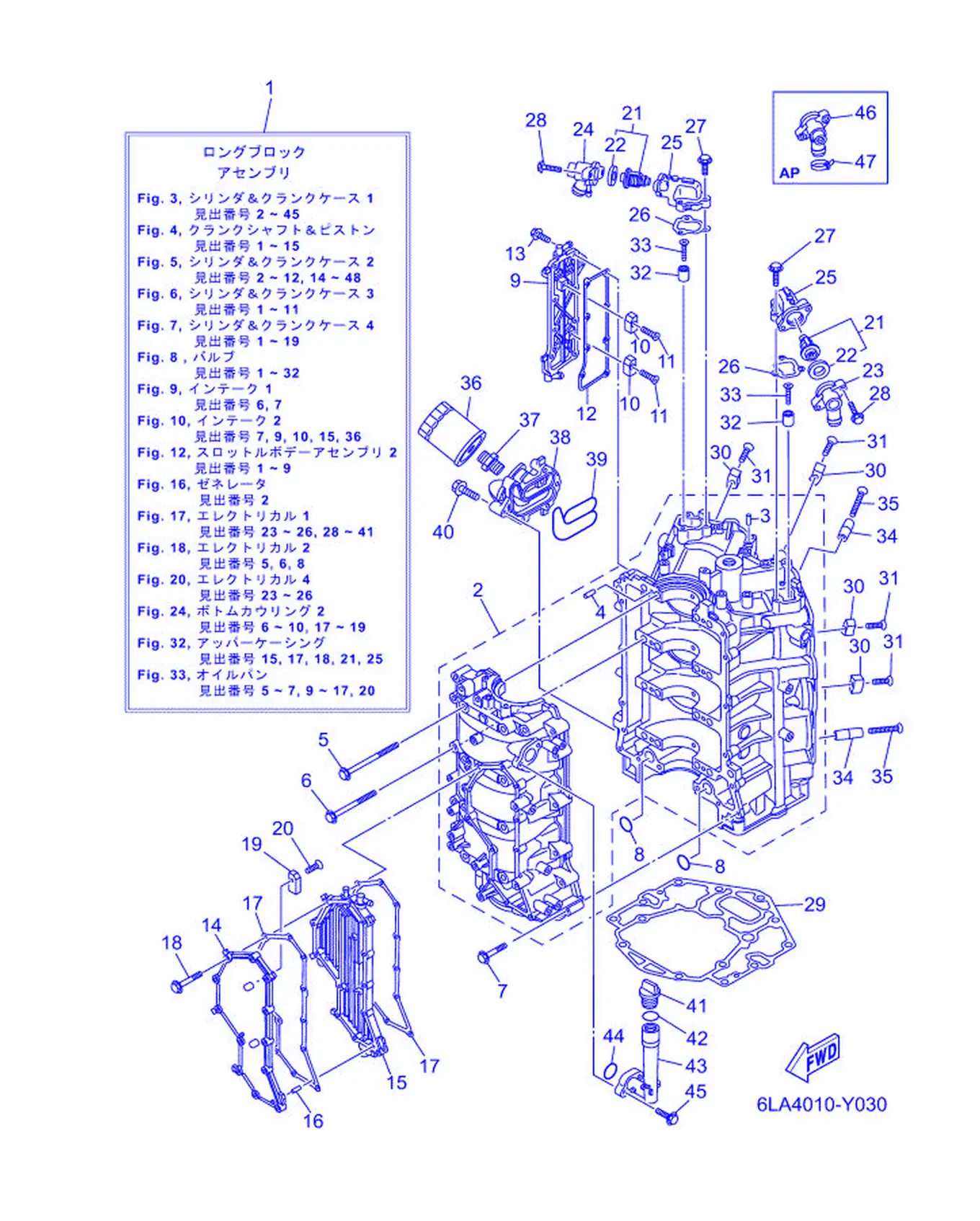

VMAX 气缸与曲轴箱 1 VMAX Cylinder & Crankcase 1 Fig.

REF	Part No.	Name	Qty
1	6KW-11000-01	Long Block Assembly	1
2	6CB-15100-10	Crankcase Assembly	1
3	93606-12019	Pin, Dowel	3
4	93606-12019	Pin, Dowel	8
5	6CB-15187-00	Bolt	8
6	6CB-15481-00	Bolt 1	8
7	90105-08175	Bolt, Flange	16
8	93210-26658	O-ring	2
9	6CB-1131C-00	Cover, Joint	1
10	63P-11325-01	Anode	2
11	90151-06M02	Screw, Countersunk	2
12	6ML-1131B-00	Gasket, Cover	1
13	90105-06M07	Bolt, Flange	8
14	6CB-15411-00	Cover, Crankcase 1	1
15	6CB-15421-10	Cover, Crankcase 2	1
16	91690-40010	Pin,Spring	1
17	6CB-15451-01	Gasket, Crankcase Cover	2
18	90105-06151	Bolt, Flange	12
19	63P-11325-01	Anode	2
20	90151-06M02	Screw, Countersunk	2
21	6CB-12411-10	Thermostat	2
22	67F-12412-00	Seal,Thermostat	1
23	6CE-12413-B0-9S	Cover, Thermostat	1
24	6CE-12413-A0-9S	Cover, Thermostat	1
25	6CB-12422-10-9S	Cover, Housing	2
26	6CB-12427-11	Gasket, Housing Cover 1	2
27	95027-06025	Bolt, Flange	6
28	90105-06037	Bolt, Flange	4
29	6KA-11351-00	Gasket, Cylinder	1
30	6AW-1132P-00	Anode 5	4
31	98780-06530	Screw, Flat Head	4
32	68T-11325-00	Anode	2
33	90151-05M05	Screw, Countersunk	2
34	6AW-1132N-01	Anode 4	2
35	98780-06550	Screw, Flat Head	2
36	N26-13440-04	Element Assembly, Oil Cleaner	1
37	90401-19001	Bolt, Union	1
38	6CB-13446-00	Connector	1
39	6CB-13477-00	Gasket	1
40	90105-06151	Bolt, Flange	5
41	6G8-15363-00	Plug,Oil	1
42	93210-24M79	O-ring	1
43	6CB-15319-00	Joint	1
44	93210-27370	O-ring	1
45	90105-06037	Bolt, Flange	2
46	6CE-12413-C0-9S	Cover, Thermostat	1
47	90465-11M59	Clamp	1

Fig. 14VMAX Cylinder & Crankcase 2

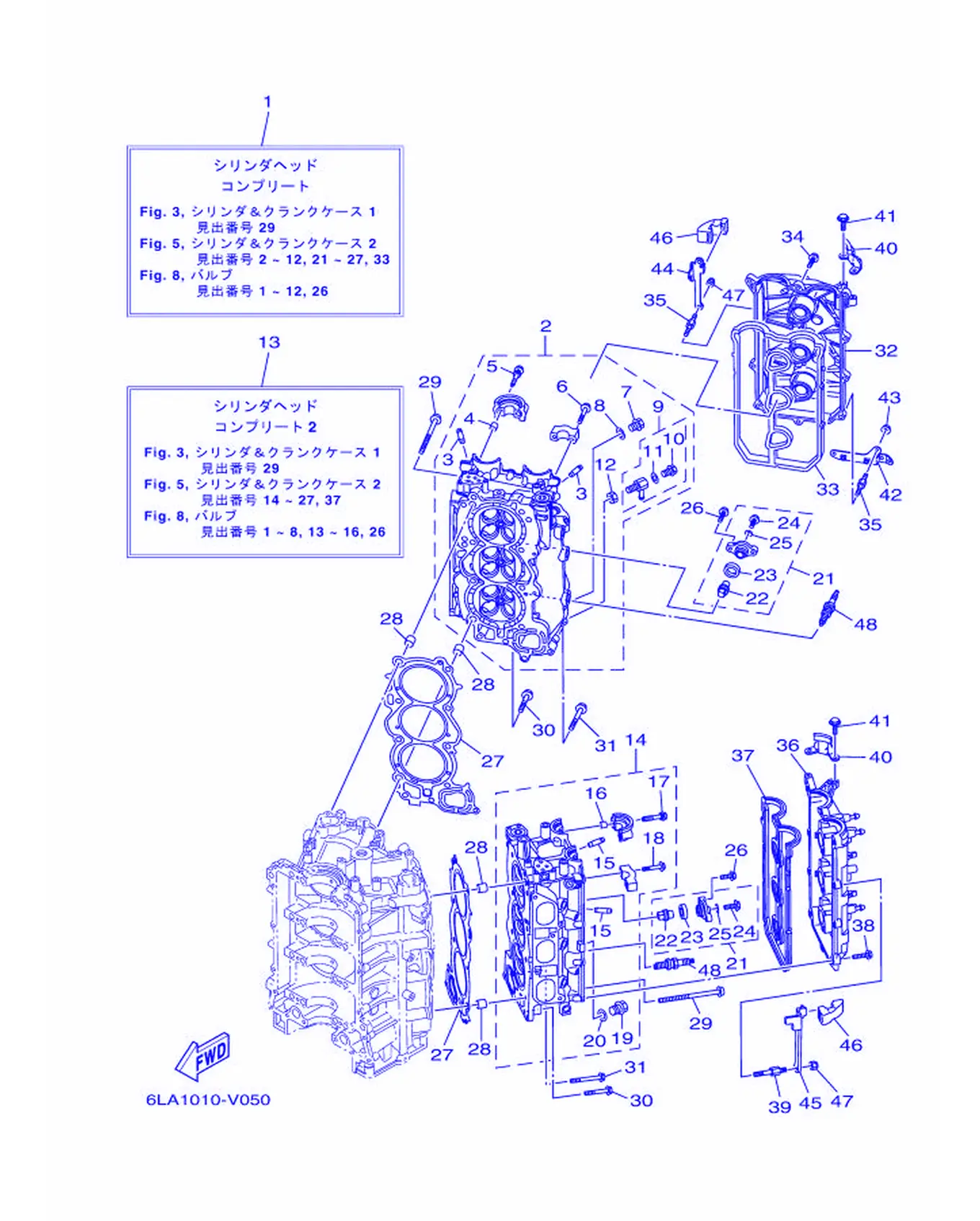

VMAX 气缸与曲轴箱 2 VMAX Cylinder & Crankcase 2 Fig.

REF	Part No.	Name	Qty
1	6KW-W009A-02	Cylinder Head Complete	1
2	6CB-11110-12	Cylinder Head Assembly	1
3	6S5-11133-10	Guide,Valve 1	12
4	91809-08006	Sleeve Guide Dowel	4
5	90119-07001	Bolt, with Washer	4
6	90119-07234	Bolt, with Washer	12
7	90340-18M09	Plug, Straight Screw	1
8	90201-186F1	Washer,Plate	1
9	6CB-83609-00	Connector Assembly	1
10	90340-14M06	Plug, Straight Screw	1
11	90430-14115	Gasket	1
12	95380-14700	Nut	1
13	6KW-W009C-02	Cylinder Head Complete 2	1
14	6CB-11120-12	Cylinder Head Assembly 2	1
15	6S5-11133-10	Guide,Valve 1	12
16	91809-08006	Sleeve Guide Dowel	4
17	90119-07001	Bolt, with Washer	4
18	90119-07234	Bolt, with Washer	12
19	90340-18M09	Plug, Straight Screw	1
20	90201-186F1	Washer,Plate	1
21	6ML-11301-00	Anode Cover Assembly	8
22	6ML-11325-00	Anode	1
23	67F-11328-01	Grommet	1
24	90105-06M07	Bolt, Flange	1
25	90430-06M03	Gasket	1
26	95D95-08025	Bolt, Flange Deep Recess	16
27	6CB-11181-00	Gasket, Cylinder Head 1	2
28	90387-11005	Collar	4
29	90149-11001	Screw	16
30	90105-08175	Bolt, Flange	4
31	90105-08220	Bolt, Flange	2
32	6CB-11191-02	Cover, Cylinder Head 1	1
33	6CB-11193-00	Gasket, Head Cover 1	1
34	95D95-06030	Bolt, Flange Deep Recess	9
35	90109-06277	Bolt	4
36	6CB-11192-02	Cover, Cylinder Head 2	1
37	6CB-11194-00	Gasket, Head Cover 2	1
38	95D95-06030	Bolt, Flange Deep Recess	11
39	90109-06277	Bolt	2
40	6AW-15142-00	Guide 1	2
41	95D95-06014	Bolt, Flange Deep Recess	4
42	6KW-2134V-00	Bracket	1
43	90179-06M28	Nut	2
44	6KW-11998-00	Bracket 1	1
45	6KW-11999-00	Bracket 2	1
46	6KW-42662-00	Damper	2
47	90185-06M07	Nut, Self-Locking	4
48	94709-00400	Plug, Spark (NGK LFR6A-11)	6

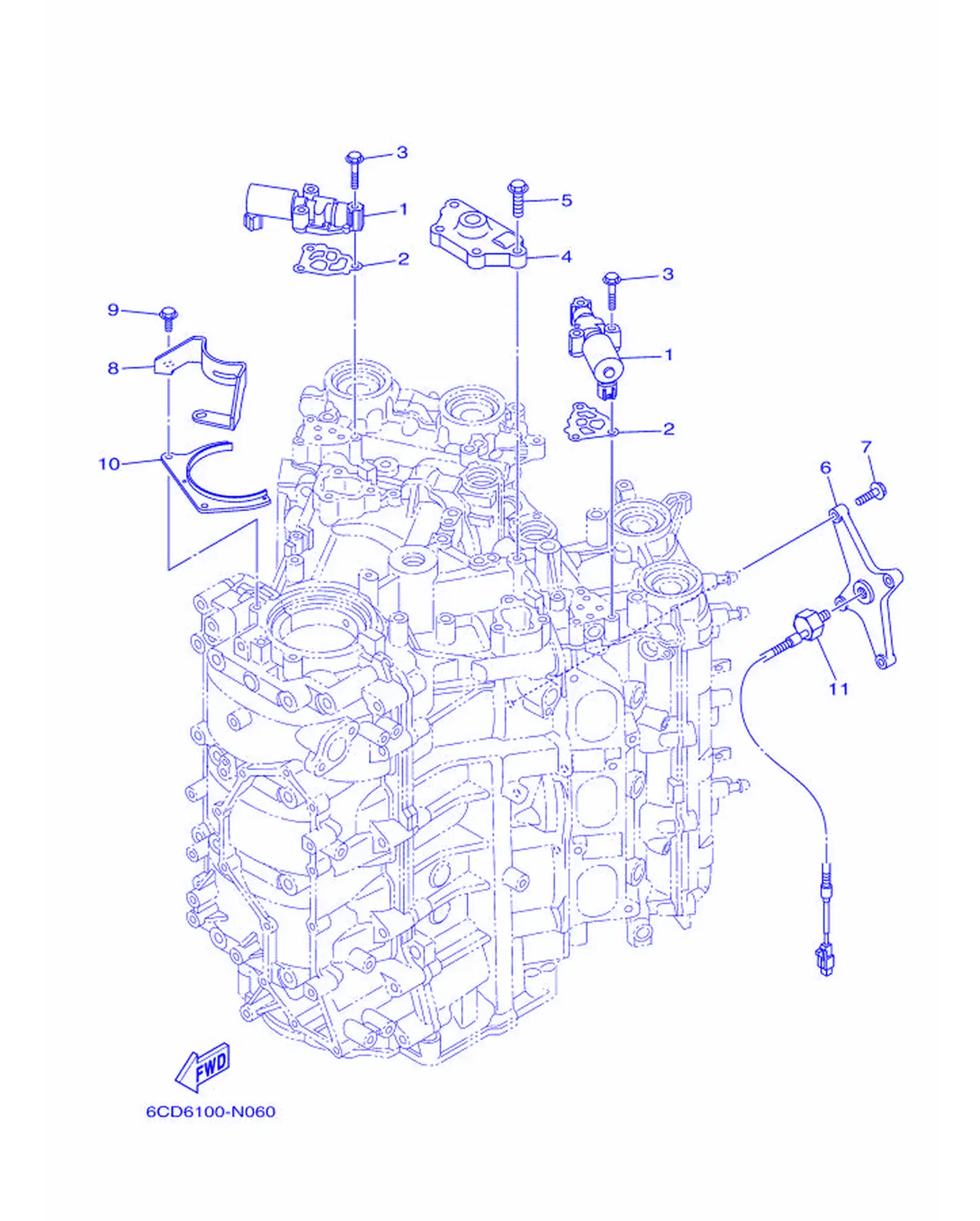

Fig. 15VMAX Cylinder & Crankcase 3

VMAX 气缸与曲轴箱 3 VMAX Cylinder & Crankcase 3 Fig.

REF	Part No.	Name	Qty
1	6CB-86120-00	Solenoid Valve Assembly	2
2	6CB-1242F-00	Gasket Filter	2
3	90105-06035	Bolt, Flange	6
4	6CB-15544-00	Stay 1	1
5	90105-08178	Bolt, Flange	4
6	6CB-1135A-00	Bracket	1
7	90105-06037	Bolt, Flange	4
8	6CB-15142-00	Guide 1	1
9	95D95-06016	Bolt, Flange Deep Recess	2
10	6CB-1149A-00	Plate 1	1
11	6P2-85780-01	Sensor, Knock	1

Fig. 16VMAX Cylinder & Crankcase 4

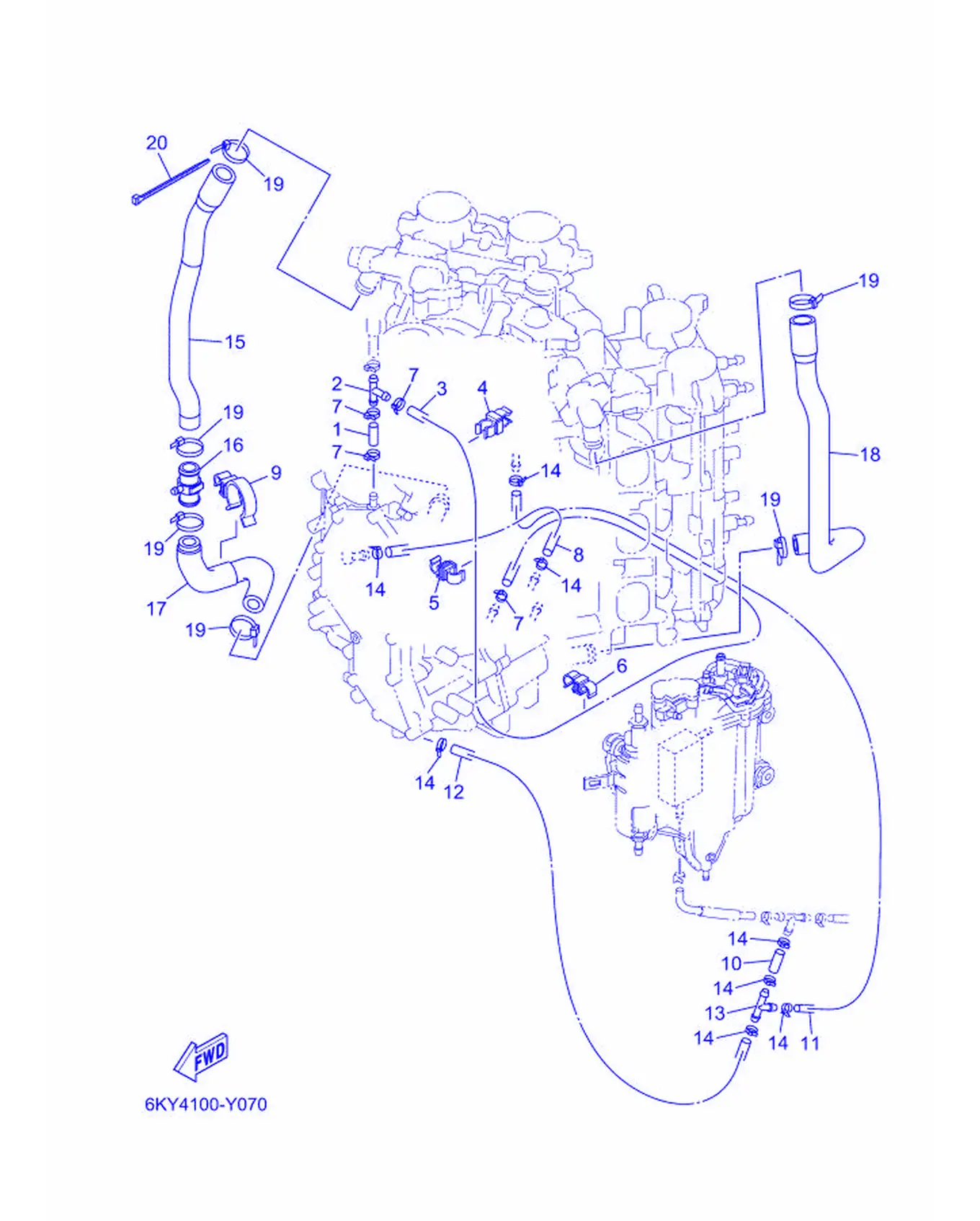

VMAX 气缸与曲轴箱 4 VMAX Cylinder & Crankcase 4 Fig.

REF	Part No.	Name	Qty
1	90445-09220	Hose (L30)	1
2	688-24378-00	Pipe,Joint	1
3	6CB-12576-10	Hose 1	1
4	90464-10M59	Clamp	1
5	90464-09013	Clamp	1
6	90464-12010	Clamp	1
7	90465-11M10	Clamp	4
8	6CB-12577-00	Hose 2	1
9	90464-26002	Clamp	1
10	90445-09220	Hose (L30)	1
11	90445-09124	Hose (L675)	1
12	90445-096H2	Hose (L280)	1
13	688-24378-00	Pipe,Joint	1
14	90465-11M10	Clamp	8
15	6ML-1244G-00	Hose 4	1
16	6CE-24378-00	Pipe, Joint 3	1
17	6CE-1244H-00	Hose 5	1
18	6CB-1243E-00	Hose 2	1
19	90465-11M59	Clamp	6
20	90465-14M66	Clamp	1

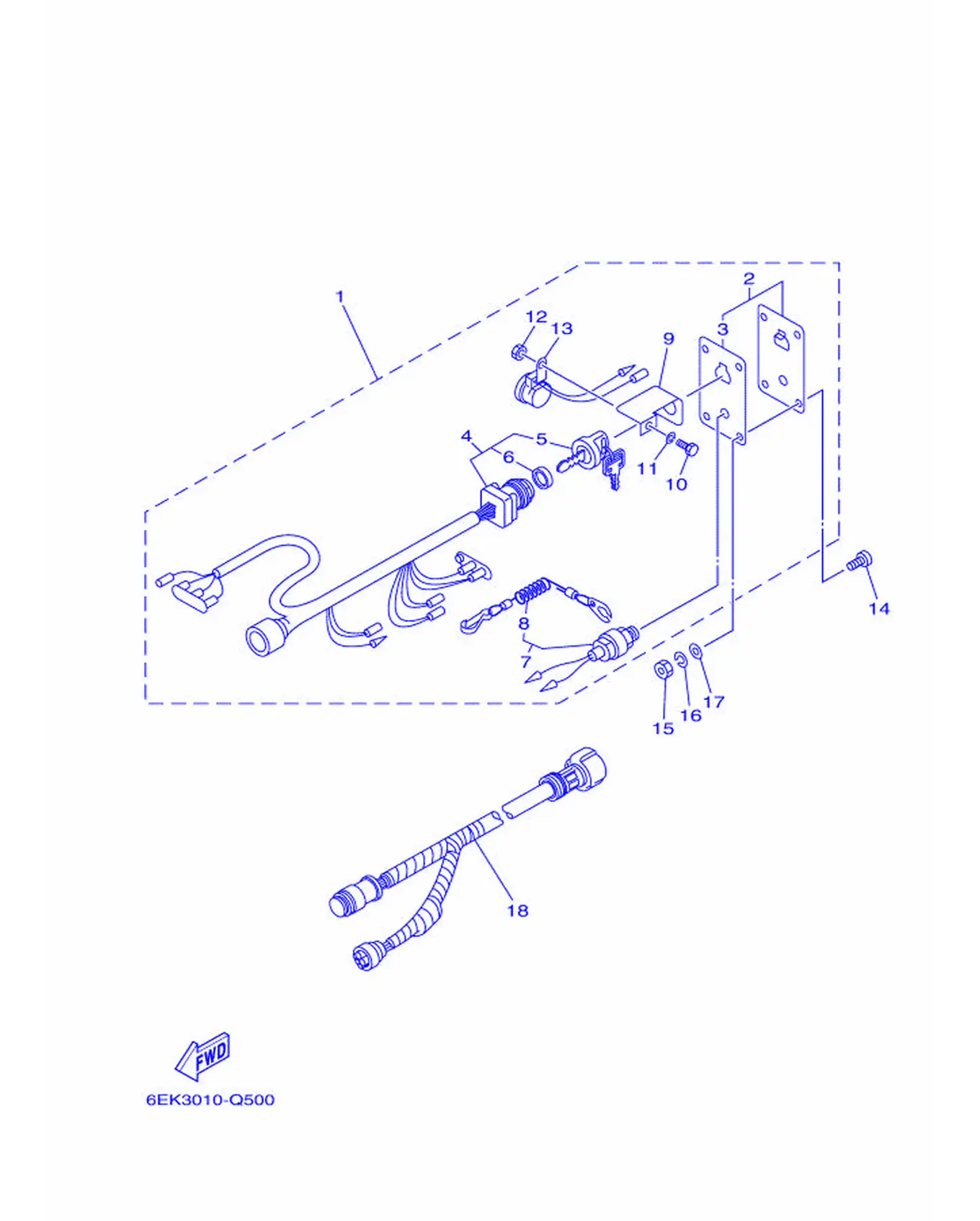

Fig. 17VMAX Switch & Panel

REF	Part No.	Name	Qty
1	6R5-82570-0A	Panel Switch Assembly	1
2	704-82571-02	Panel, Switch	1
3	6R5-82588-01	Plate	1
4	6R5-82510-04	Main Switch Assembly	1
5	676-82577-01	Cap, Key	1
6	703-82532-00	Cap	1
7	688-82575-02	Engine Stop Switch Assembly	1
8	682-82556-00	Stopper	1
9	64D-82581-00	Stay, Cord Clamp	1
10	97303-05012	Bolt	1
11	92903-05100	Washer,Spring	1
12	95303-05700	Nut	1
13	6R5-83383-00	Buzzer	1
14	90149-05M05	Screw	4
15	95303-05600	Nut	4
16	92903-05100	Washer,Spring	4
17	92903-05600	Washer,Plate	4
18	688-8258A-70	Extension, Wire Harness	1

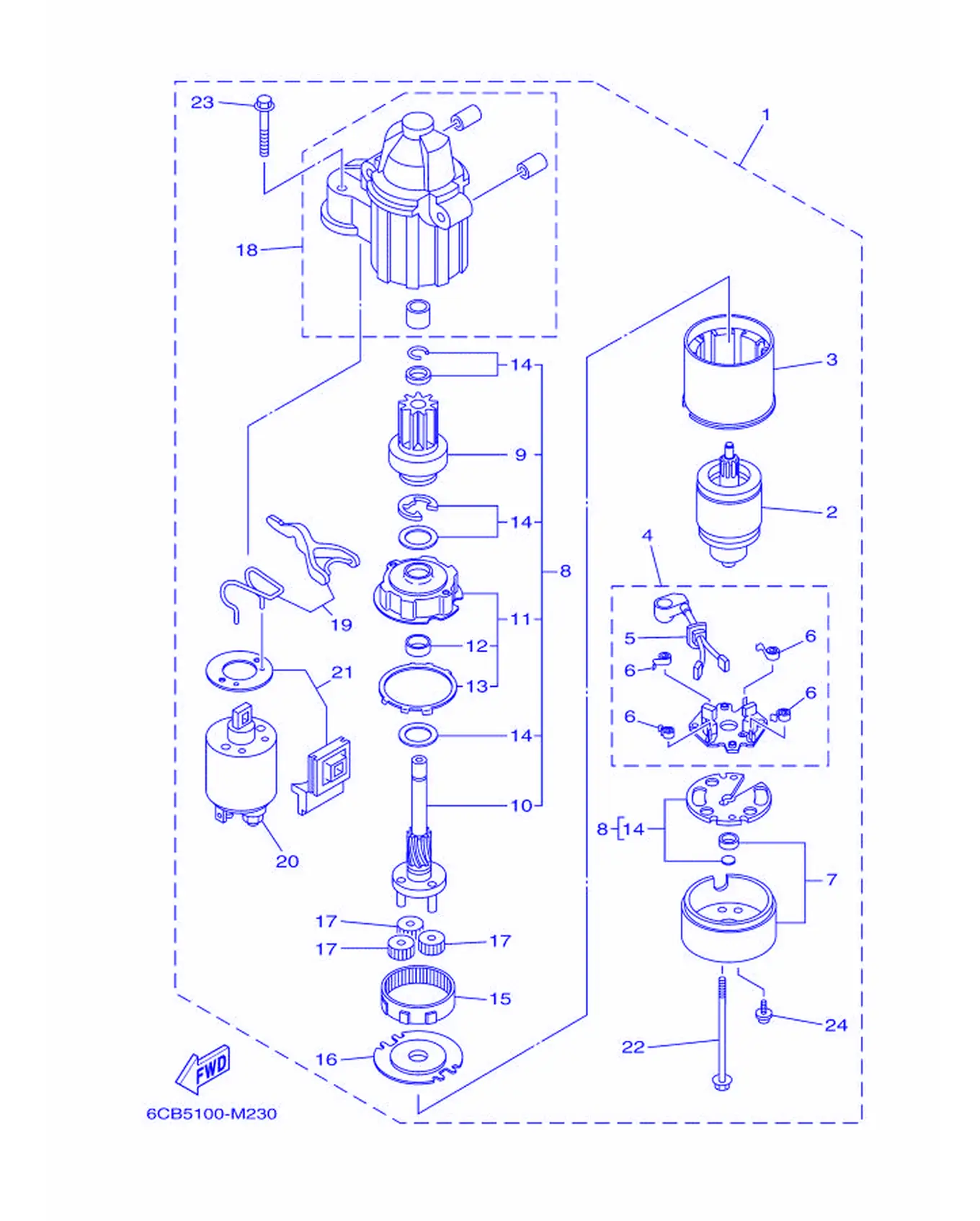

Fig. 18VMAX Starting Motor

REF	Part No.	Name	Qty
1	6CB-81800-02	Starting Motor Assembly	1
2	67F-81850-00	Armature Assembly	1
3	67F-81810-00	Stator Assembly	1
4	69J-81840-11	Brush Holder Assembly	1
5	69J-81801-11	Brush Set	1
6	67F-81813-00	Spring, Brush	4
7	6CB-81820-00	Rear Bracket Assembly	1
8	6CB-81807-00	Gear Assembly, Starting Motor	1
9	6CB-81832-00	Clutch, Overrun	1
10	6CB-81836-00	Shaft, Pinion	1
11	67F-81821-00	Bracket, Center 1	1
12	67F-81841-00	Bearing	1
13	67F-8183R-00	Gasket	1
14	6CB-81809-00	Washer Kit	1
15	67F-81891-00	Gear, Ring	1
16	67F-81830-00	Bracket, Center 2	1
17	60V-8183T-00	Gear, Idler	3
18	6CB-81842-00	Cover	1
19	6C5-81839-00	LeverAssembly	1
20	6C5-81941-01	StarterRelayAssembly	1
21	6C5-81869-00	Cover, Dust	1
22	6CB-81826-00	Bolt	2
23	69J-81828-00	Bolt 2	2
24	67F-81846-00	Screw	2

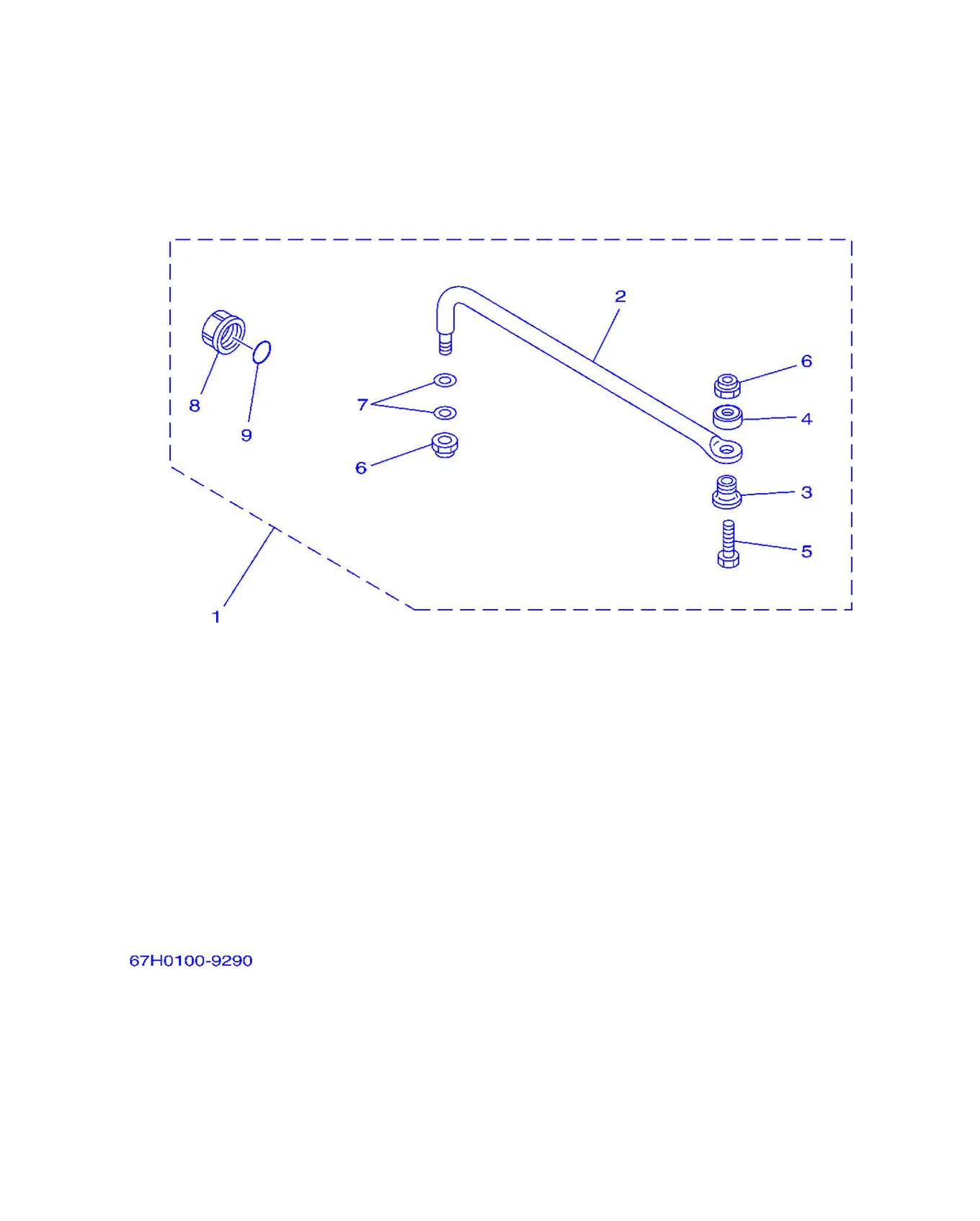

Fig. 19VMAX Steering Guide

REF	Part No.	Name	Qty
1	6E5-61350-02	SteeringGuideAttachment	1
2	6E5-61351-01	Rod, Steering Link	1
3	90387-10M61	Collar	1
4	90560-12M01	Spacer	1
5	6E5-61355-00	Bolt	1
6	90185-09M01	Nut, Self-Locking	2
7	90201-10M20	Washer,Plate	2
8	6E5-43145-01	Cap, Clamp Bracket	1
9	93210-16275	O-ring	1

Fig. 20VMAX Throttle Body Assembly 1

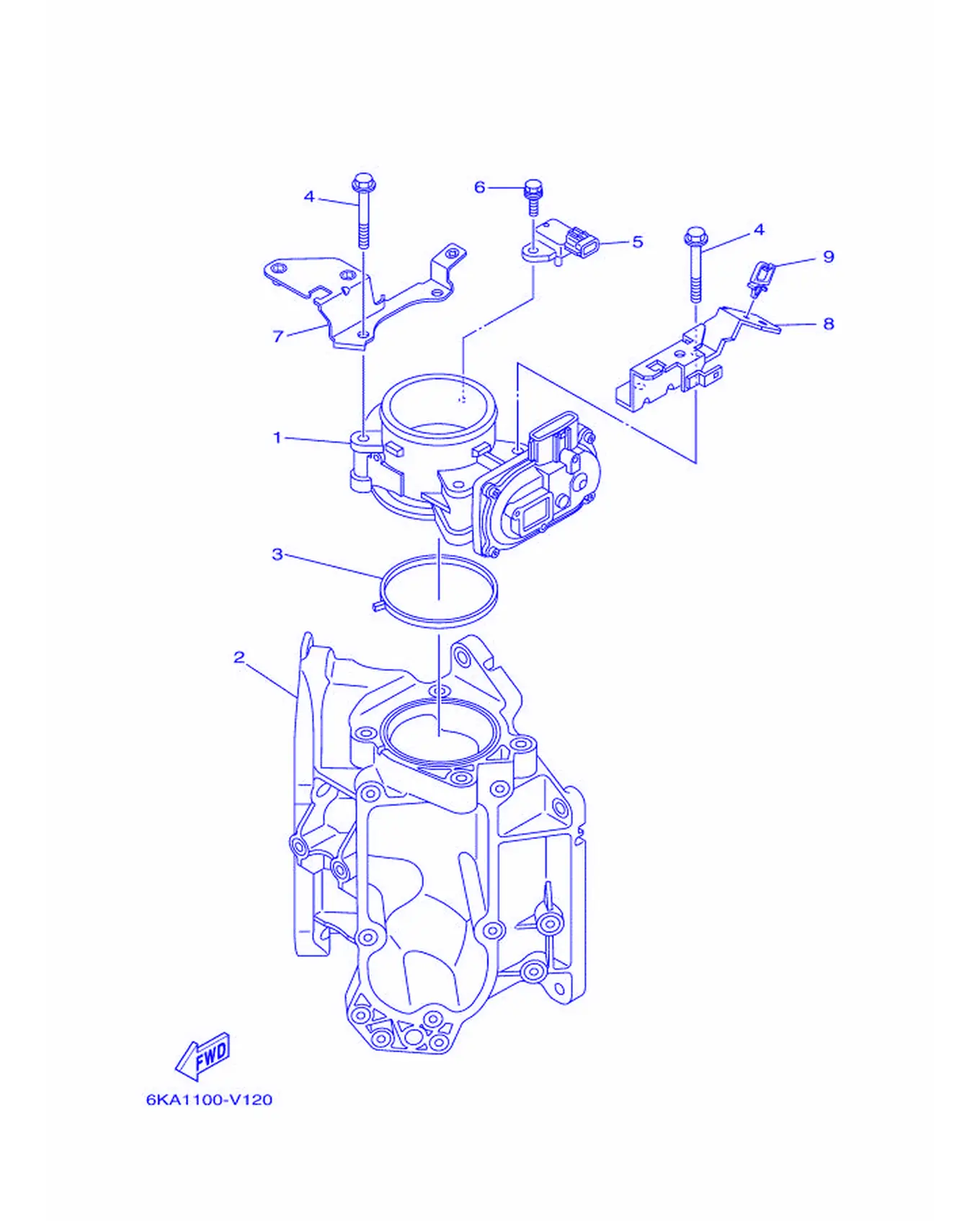

VMAX 节气门体总成 1 VMAX Throttle Body Assembly 1 Fig.

REF	Part No.	Name	Qty
1	6CB-13751-12	Body, Throttle 1	1
2	6CB-13711-00	Mixing Body	1
3	6CB-13556-00	Gasket, Manifold	1
4	95D75-08060	Bolt, Flange Deep Recess	4
5	6P2-82380-00	Sensor, Pressure	1
6	97E75-06620	Bolt, Hexagon with Washer Deep Recess	1
7	6KA-13898-00	Holder	1
8	6CB-13898-11	Holder	1
9	90464-08004	Clamp	1

Fig. 21VMAX Throttle Body Assembly 2

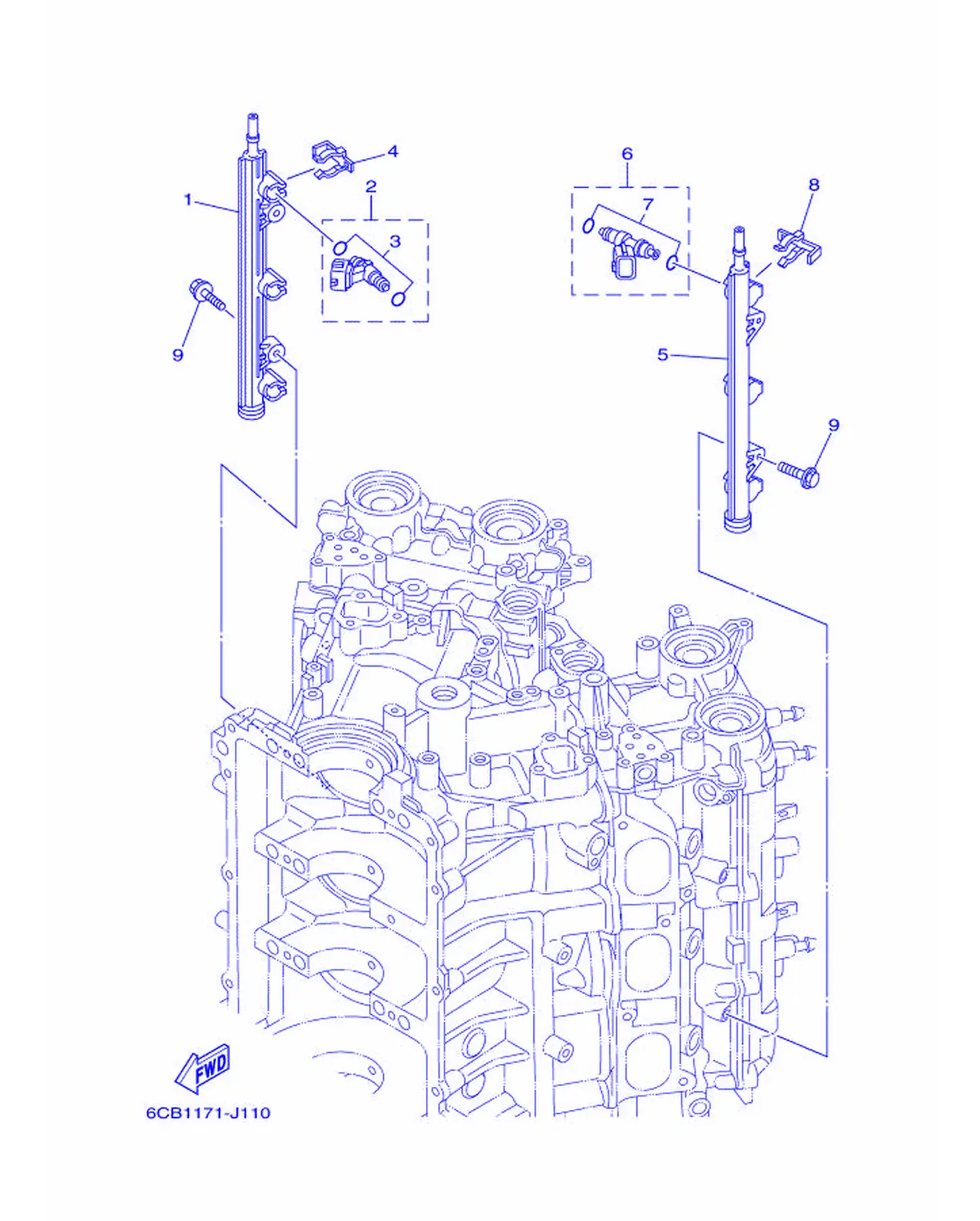

VMAX 节气门体总成 2 VMAX Throttle Body Assembly 2 Fig.

REF	Part No.	Name	Qty
1	6CB-13161-11	Pipe, Delivery 1	1
2	6AW-13761-01	Injector Assembly	3
3	6AW-1410B-00	Packing Kit	1
4	6CB-13577-00	Clip	3
5	6CB-13171-11	Pipe, Delivery 2	1
6	6AW-13761-01	Injector Assembly	3
7	6AW-1410B-00	Packing Kit	1
8	6CB-13577-00	Clip	3
9	90119-06047	Bolt, With Washer	4

Fig. 22VMAX Generator

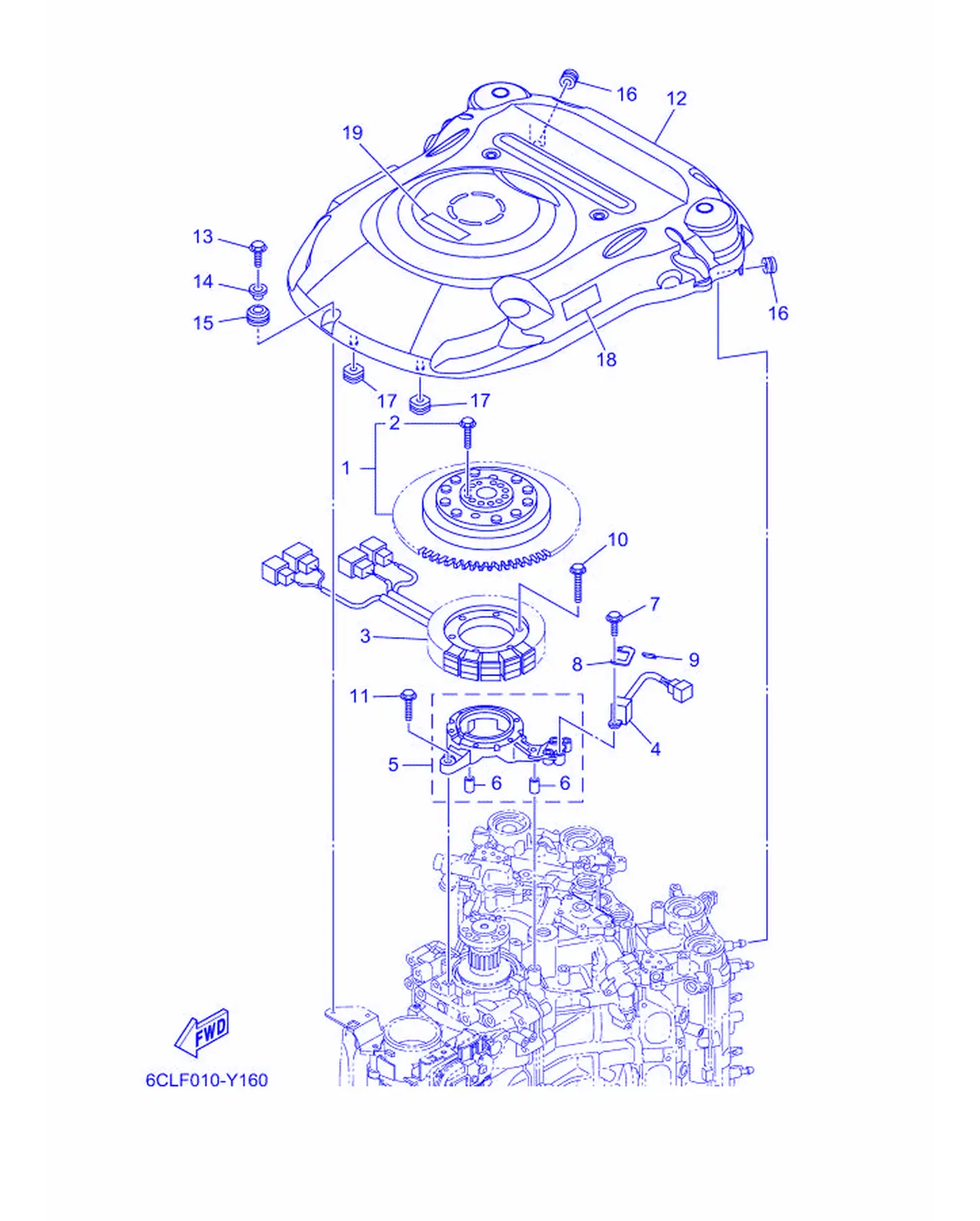

REF	Part No.	Name	Qty
1	6KW-W8145-00	Rotor Assembly (with Bolt)	1
2	6EK-W9010-00	BoltSet	1
3	6CE-81410-00	Starter Assembly	1
4	6CB-85580-01	Coil, Pulser	1
5	6CB-85561-00	Base, Magnet	1
6	99530-08012	Pin, Dowel	2
7	97595-05520	Bolt, with Washer	2
8	6ML-85592-00	Stay, Pulser	1
9	90465-11M10	Clamp	1
10	95022-06035	Bolt, Flange	6
11	95D95-06030	Bolt, Flange Deep Recess	4
12	6CE-81337-01	Cover, Flywheel	1
13	95D95-06025	Bolt, Flange Deep Recess	1
14	90387-06285	Collar	1
15	90480-15M31	Grommet	1
16	90480-12314	Grommet	2
17	6CB-85516-01	Spacer	2
18	6DK-13437-00	Mark, Caution	1
19	6EE-81994-01	Label, Safety	1

Fig. 23VMAX Periodic Maintenance Parts

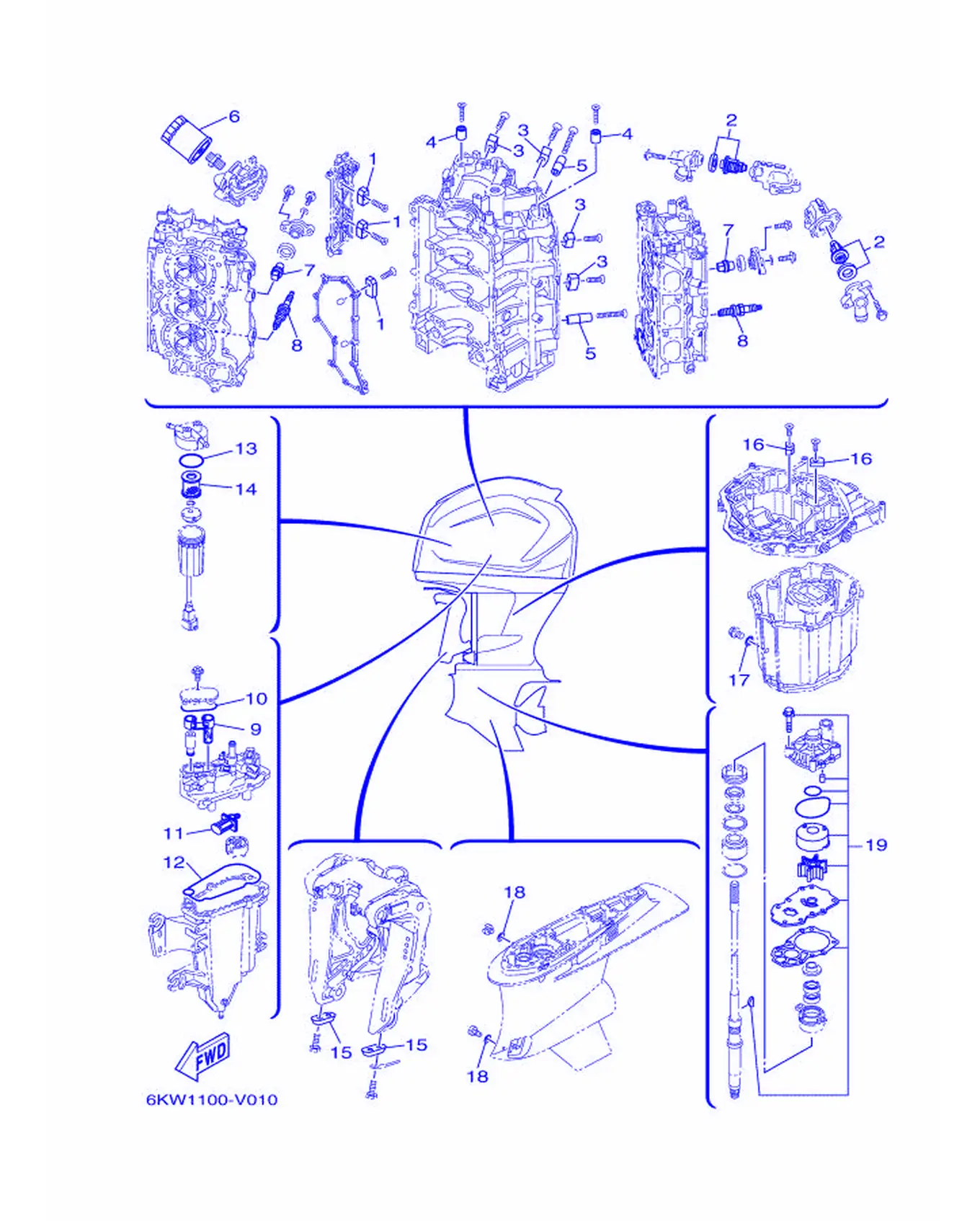

VMAX 定期更换件 VMAX Periodic Maintenance Parts Fig.

REF	Part No.	Name	Qty
1	63P-11325-01	Anode	4
2	6CB-12411-10	Thermostat	2
3	6AW-1132P-00	Anode 5	4
4	68T-11325-00	Anode	2
5	6AW-1132N-01	Anode 4	2
6	N26-13440-04	Element Assembly, Oil Cleaner	1
7	6ML-11325-00	Anode	8
8	94709-00400	Plug, Spark (NGK LFR6A-11)	6
9	6CB-24501-01	Filter, Fuel	1
10	6CB-13016-00	O-ring	1
11	63P-13915-00	Filter	1
12	6CB-14984-00	Gasket,FloatChamber	1
13	6P3-24564-00	Gasket	1
14	6P3-24563-02	Element, Filter	1
15	65W-45251-00	Anode	2
16	63P-11325-11	Anode	2
17	90430-14M09	Gasket	1
18	90430-08003	Gasket	2
19	6CB-W0078-00	Water Pump Repair Kit	1

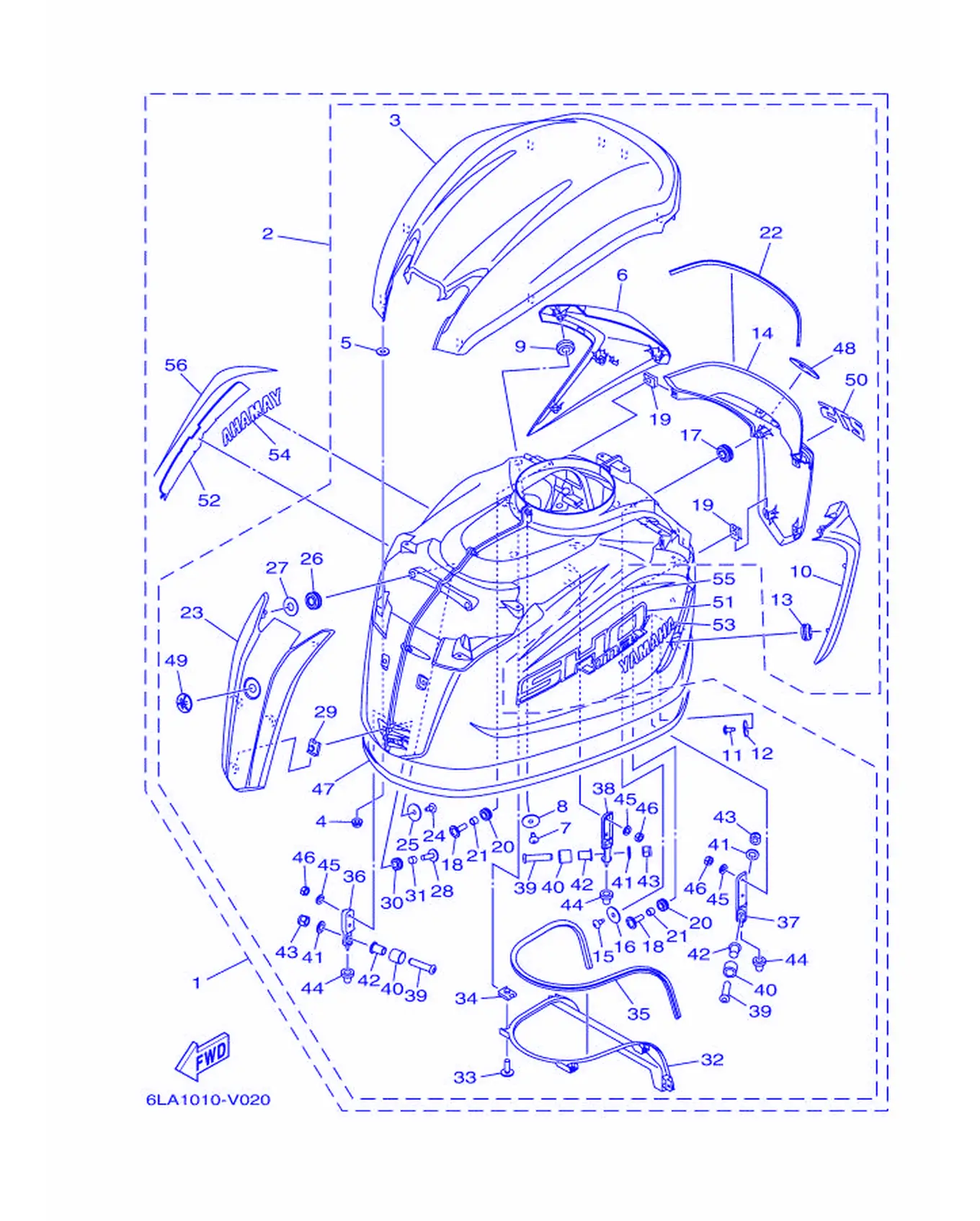

Fig. 24VMAX Top Cowling

REF	Part No.	Name	Qty
1	6LA-42610-01	Top Coupling Assembly	1
2	6KW-4261A-01	Top Cowling (Graphic)	1
3	6KW-42613-00-NA	Molding, Air Duct	1
4	90179-06M28	Nut	8
5	6CB-42545-00	Washer, Plain	8
6	6KW-42626-00-NA	Louver 1	1
7	97780-50012	Screw, Tapping	4
8	90201-053R1	Washer, Plate	4
9	90480-16009	Grommet	4
10	6KW-42636-00-NA	Louver 2	1
11	97780-50012	Screw, Tapping	4
12	90201-053R1	Washer, Plate	4
13	90480-16009	Grommet	4
14	6KW-42625-00-P0	Panel Rear	1
15	97780-50012	Screw, Tapping	2
16	90201-053R1	Washer, Plate	2
17	90480-16009	Grommet	2
18	90159-06053	Screw, Washer	4
19	90183-061A8	Nut, Spring	4
20	90480-13M24	Grommet	4
21	90387-06M43	Color	4
22	6KW-42716-00	Rubber Seal 1	1
23	6KW-42614-00-NA	Panel, Front Upper	1
24	97780-50012	Screw, Tapping	2
25	90201-053R1	Washer, Plate	2
26	90480-16009	Grommet	2
27	90201-106M5	Washer, Plate	2
28	90159-06053	Screw, Washer	3
29	90183-061A8	Nut, Spring	3
30	90480-13M24	Grommet	3
31	90387-06M43	Color	3
32	6KW-42635-01	Duct, Water Separator	1
33	90159-06053	Screw, Washer	6
34	90183-061A8	Nut, Spring	6
35	6KW-42617-00	Damper, Foam	1
36	6KW-42647-00	Holder, Clamp Band	1
37	6KW-42648-00	Holder, Clamp Band	1
38	6KW-42649-00	Holder, Clamp Band	1
39	90111-08078	Bolt	3
40	90387-10094	Collar	3
41	92990-08600	Washer,Plate	3
42	90387-08M45	Color	3
43	95780-08300	Nut, Flange	3
44	6AW-42663-01	Damper 2	3
45	92990-06100	Washer,Spring	6
46	95380-06600	Nut, Hexagon	6
47	6CB-42628-00	Seal	1
48	6KN-42697-00	Tuning Fork Mark	1
49	6LB-42697-00	Tuning Fork Mark	1
50	6LA-42678-00	Graphic, Rear	1
51	6KW-42675-00	Graphic, Side 1	1
52	6KW-42676-00	Graphic, Side 2	1
53	6KW-42681-00	Mark, Coupling	1
54	6KW-42682-00	Mark, Coupling	1
55	6KW-42683-00	Mark, Coupling	1
56	6KW-42684-00	Mark, Coupling	1

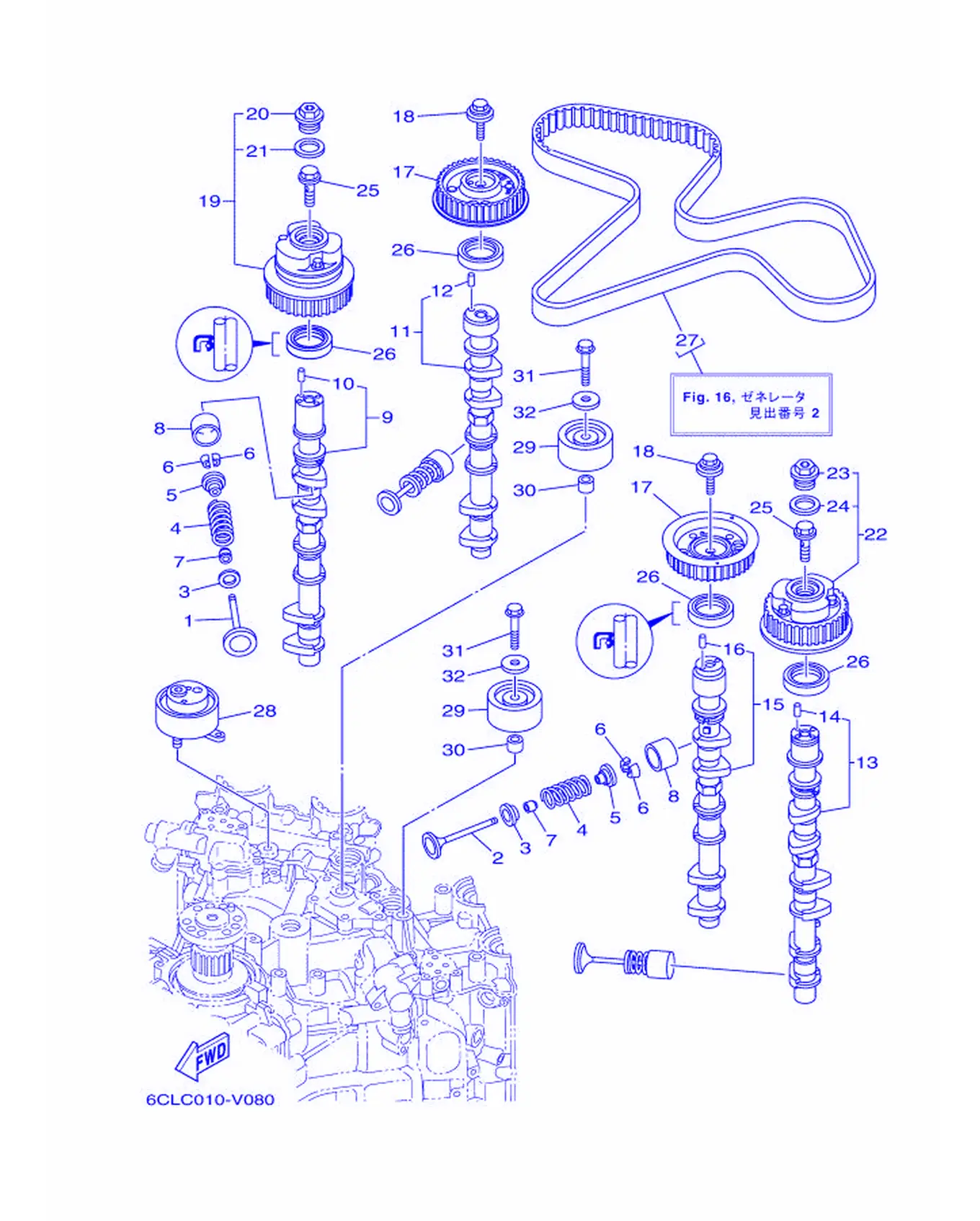

Fig. 25VMAX Valve

REF	Part No.	Name	Qty
1	6CB-12111-00	Valve, Intake	12
2	6DA-12121-00	Valve, Exhaust	12
3	K0F-A3743-00	Seat, ValveSpring	24
4	6CB-12113-00	Spring, Valve Inner	24
5	K0F-A3741-00	Retainer, ValveSpring	24
6	K0F-A3742-00	Lock, ValveSpringRetainer	48
7	51Y-12119-00	Seal, Valve Stem	24
8	K0F-A3751-00	Lifter, Valve (3.000)	24
8	K0F-A3751-10	Lifter, Valve (3.025)	24
8	K0F-A3751-20	Lifter, Valve (3.050)	24
8	K0F-A3751-30	Lifter, Valve (3.075)	24
8	K0F-A3751-40	Lifter, Valve (3.100)	24
8	K0F-A3751-50	Lifter, Valve (3.122)	24
8	K0F-A3751-60	Lifter, Valve (3.142)	24
8	K0F-A3751-70	Lifter, Valve (3.162)	24
9	6KA-12171-01	Camshaft 1	1
10	93605-10108	Pin, Dowel	1
11	6KA-12181-00	Camshaft 2	1
12	93605-10108	Pin, Dowel	1
13	6KA-12172-01	Camshaft 3	1
14	93605-10108	Pin, Dowel	1
15	6KA-12182-00	Camshaft 4	1
16	93605-10108	Pin, Dowel	1
17	6KA-11567-00	Gear, Driven 2	2
18	90119-10050	Bolt, With Washer	2
19	6CB-12645-01	Pulley Assembly 1	1
20	6P2-12623-00	Bolt	1
21	6P2-12663-00	Gasket	1
22	6CB-1264A-01	Pulley Assembly 2	1
23	6P2-12623-00	Bolt	1
24	6P2-12663-00	Gasket	1
25	6P2-12615-00	Bolt	2
26	93102-38008	OilSeal	4
27	6CB-W4624-00	Belt (Rotor Bolt Included)	1
28	6CB-11590-06	Tensioner Assembly	1
29	6CB-15512-00	Gear, Idler 1	2
30	99530-14016	Pin, Dowel	2
31	90119-10M07	Bolt, With Washer	2
32	90201-10M01	Washer,Plate	2

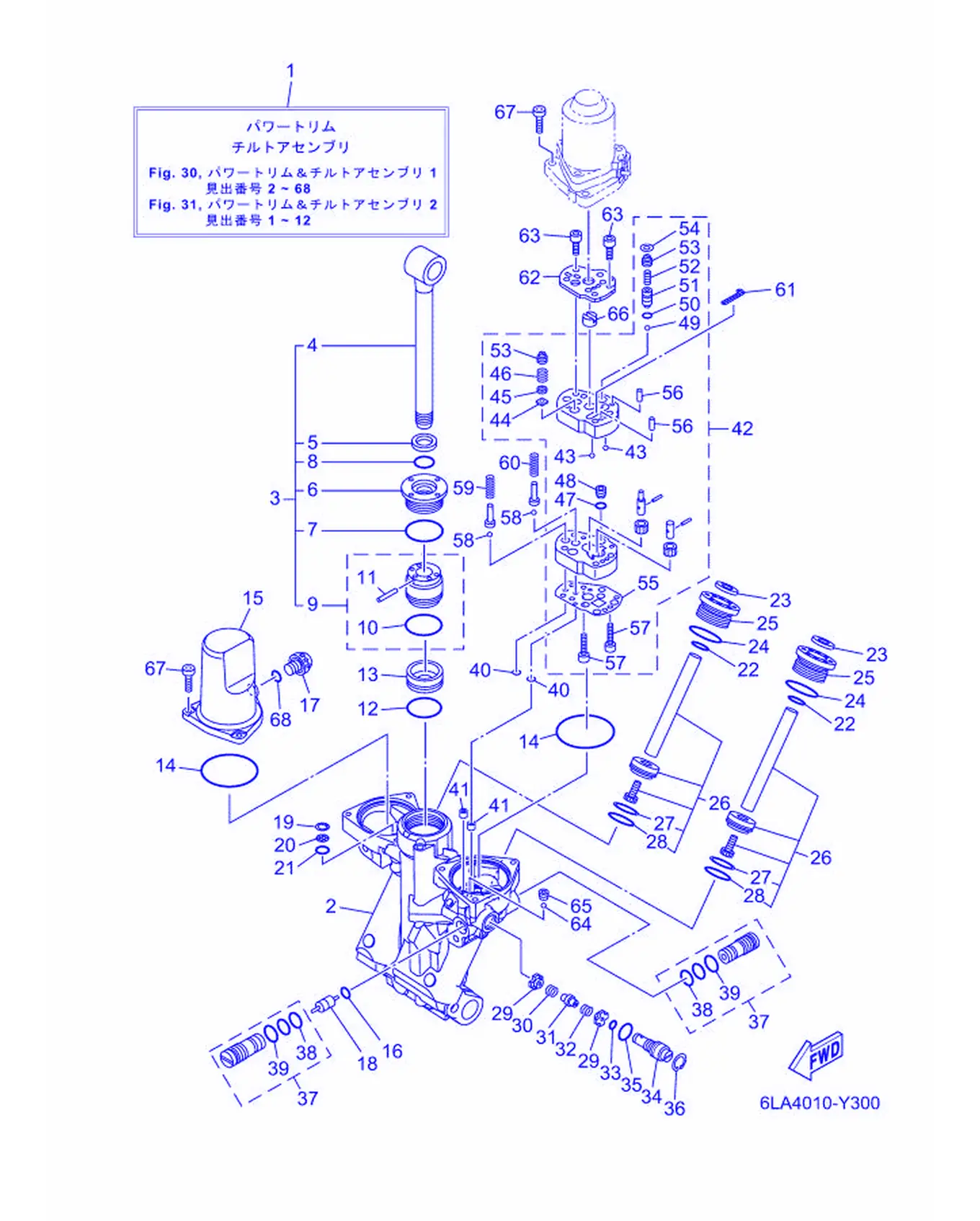

Fig. 26VMAX Power Trim & Tilt Assembly 1

VMAX 动力倾斜与升降总成 1 VMAX Power Trim & Tilt Assembly 1 Fig.

REF	Part No.	Name	Qty
1	6KW-43800-01	Power Trim & Tilt Assembly	1
2	6KW-4380L-01	Housing, Trim & Tilt Sub-Assembly	1
3	6KW-43810-00	Tilt Piston Sub-Assembly	1
4	6KW-43801-00	Rod	1
5	93106-19001	Oil Seal	1
6	63P-43811-20	Screw, Cylinder End	1
7	63P-43861-20	O-ring	1
8	63P-43863-10	O-ring	1
9	63P-4380P-20	Piston Sub Assembly	1
10	6H1-43862-00	O-ring	1
11	91609-16010	Pin, Spring	1
12	6H1-43862-00	O-ring	1
13	63P-43814-20	Piston, Free	1
14	93210-68N50	O-ring	2
15	6KW-43828-00	Body, Reservoir	1
16	93210-09165	O-ring	1
17	6CJ-43829-20	Reserve Plug	1
18	6H1-43841-11	Piston, Shuttle	1
19	63P-43876-10	Ring, Snap	1
20	63P-43816-10	Filter 1	1
21	93210-11N52	O-ring	1
22	6D8-43863-00	O-ring	2
23	63P-43812-20	Seal, Dust	2
24	63P-43862-10	O-ring	2
25	63P-43821-21	Screw, Trim Cylinder End	2
26	63P-43820-20	Trim Piston Sub-Assembly	2
27	62X-43871-00	Ring, Back Up	1
28	93210-29375	O-ring	1
29	63P-43847-10	Seat, Manual Valve	2
30	63P-43854-10	Spring, Manual Release	1
31	63P-4382A-10	Adapter 1	1
32	63P-4384H-10	Spring	1
33	69J-4389J-00	O-ring	1
34	63P-43845-20	Screw, Manual Release	1
35	93210-12327	O-ring	1
36	61A-43876-01	Ring, Snap	1
37	63P-43802-21	Valve Sub-Assembly	2
38	93210-12N52	O-ring	1
39	6H1-43866-01	O-ring	1
40	93210-064A5	O-ring	2
41	63P-4381C-20	Filter 3	2
42	63P-43830-20	Gear Pump Assembly	1
43	93503-16003	Ball	2
44	6H1-4384G-11	Seal, Relief Valve	1
45	6H1-43844-10	Pin, Valve Support	1
46	6H1-43856-10	Spring, Down Relief	1
47	93210-07N51	O-ring	1
48	63P-43851-20	Seat, Relief Valve	1
49	93501-08001	Ball	1
50	93210-064A5	O-ring	1
51	63P-43844-20	Pin, Valve Support	1
52	69J-43855-00	Spring	1
53	63P-43843-10	Screw, Valve Lock	2
54	63P-43338-10	Washer, Wave	1
55	63P-4384G-20	Seal, Relief Valve	1
56	93604-10011	Pin, Dowel	2
57	91312-04020	Bolt, Hexagon Socket Head	2
58	93501-08001	Ball	2
59	63P-43857-10	Spring	1
60	63P-4385H-10	Spring,Seal	1
61	6CJ-43816-00	Filter 1	1
62	63P-4381J-10	Plate	1
63	91312-05035	Bolt, Hexagon Socket Head	4
64	93505-32038	Ball	1
65	61A-43878-00	Bolt, Socket	1
66	69J-43831-00	Connector,Shaft	1
67	91380-06025	Bolt	6
68	6CJ-43861-10	O-ring	1

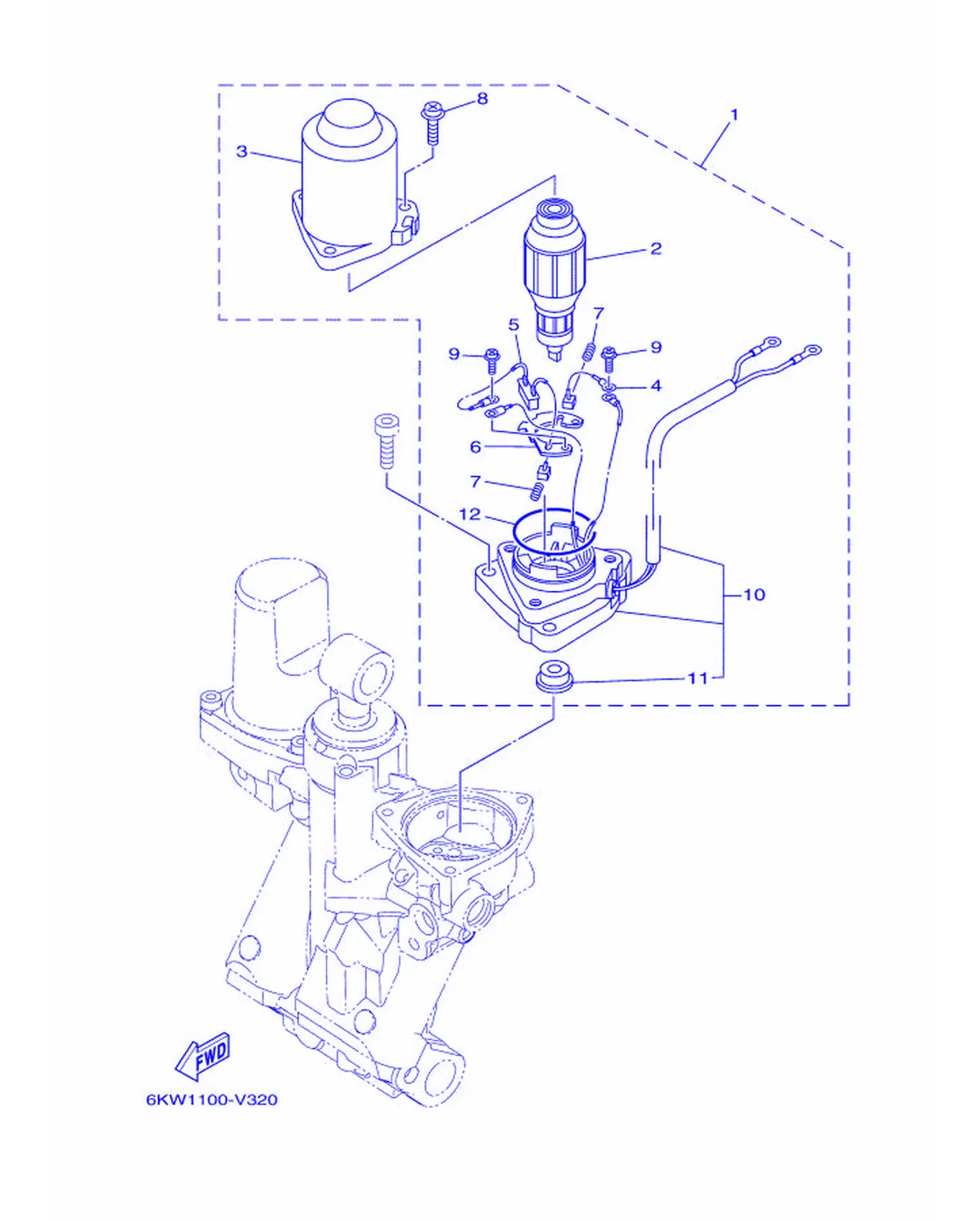

Fig. 27VMAX Power Trim & Tilt Assembly 2

VMAX 动力倾斜与升降总成 2 VMAX Power Trim & Tilt Assembly 2 Fig.

REF	Part No.	Name	Qty
1	6KW-43880-01	Motor Assembly	1
2	6EK-43805-01	Armature Assembly	1
3	6EK-43804-11	Starter Assembly	1
4	6EK-43892-00	Brush 2	1
5	63P-82181-20	Circuit Breaker Complete	1
6	6EK-4380F-00	Plate, Brush Holder	1
7	62X-4386K-00	Spring, Brush	2
8	63P-43879-10	Screw, Washer	3
9	97602-04316	Screw, Pan Head Washer	2
10	63P-43881-22	Frame, End	1
11	6EK-43882-00	Oil Seal	1
12	6EK-43862-01	O-ring	1

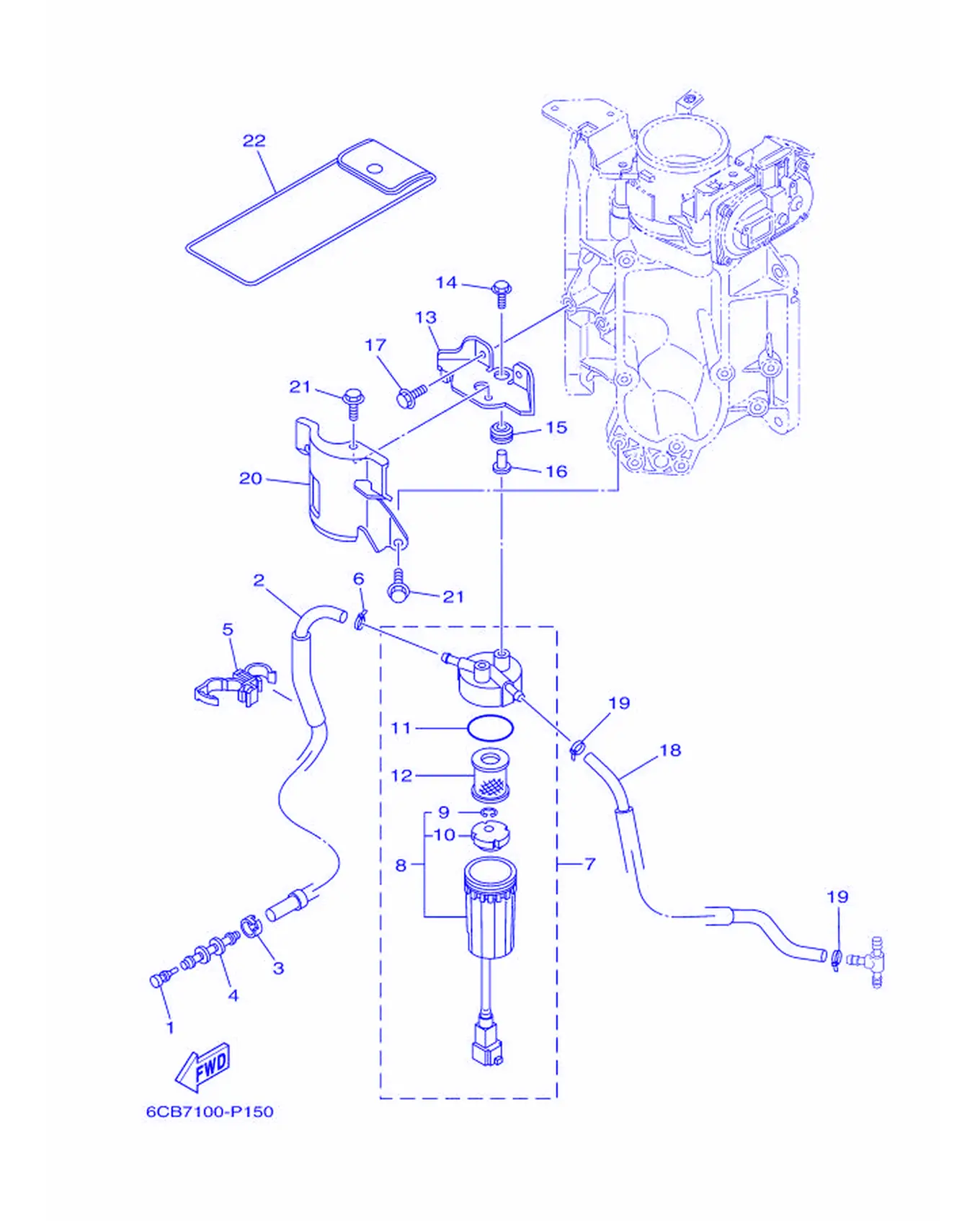

Fig. 28VMAX Fuel

REF	Part No.	Name	Qty
1	689-85547-01	Damper	1
2	6CB-24314-12	Pipe 4	1
3	6E5-24351-51	Band 1	1
4	6AW-24377-01	Pipe, Joint 2	1
5	90464-12012	Clamp	1
6	90465-11M10	Clamp	1
7	6P3-24560-23	Filter Assembly	1
8	6P3-24562-21	Cup, Filter	1
9	6P3-24519-00	Clip	1
10	6P3-24469-00	Float, Water Level	1
11	6P3-24564-00	Gasket	1
12	6P3-24563-02	Element, Filter	1
13	6CB-24566-00	Bracket, Filter	1
14	90119-06309	Bolt, with Washer	2
15	90480-10M23	Grommet	2
16	90387-06289	Color	2
17	95D95-06016	Bolt, Flange Deep Recess	2
18	6CB-24313-10	Pipe 3	1
19	90465-11M10	Clamp	2
20	6CB-24596-01	Cover	1
21	95D95-06014	Bolt, Flange Deep Recess	2
22	69J-28100-03	Tool Kit	1

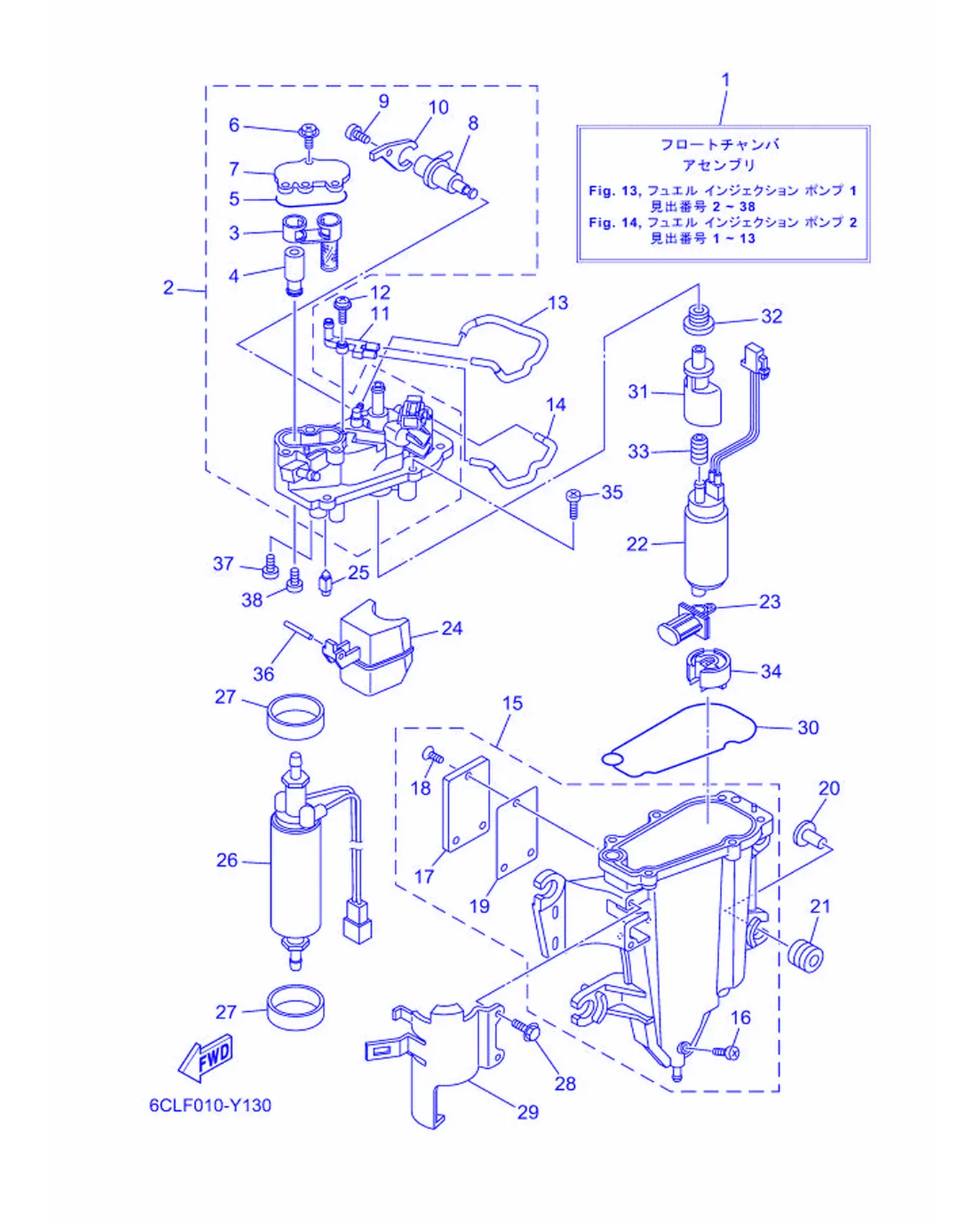

Fig. 29VMAX Fuel Injection Pump

VMAX 燃油喷射泵 VMAX Fuel Injection Pump Fig.

REF	Part No.	Name	Qty
1	6CB-14180-17	Float Chamber Assembly	1
2	6CB-14182-02	Cover, Float Chamber	1
3	6CB-24501-01	Filter, Fuel	1
4	6CB-24460-00	Relief Valve Assembly	1
5	6CB-13016-00	O-ring	1
6	6CB-14216-00	Screw	3
7	6CB-24217-00	Cover	1
8	6CB-13906-01	Regulator, Pressure	1
9	6CB-14564-00	Screw	1
10	6CB-14146-00	Plate	1
11	68V-24379-10	Pipe,Joint 4	1
12	68V-14216-00	Screw	1
13	6CB-1475H-00	Pipe 5	1
14	6CB-1475J-00	Pipe 6	1
15	6ML-14181-00	Body, Float Chamber 1	1
16	6P2-14191-00	Drain Plug	1
17	6EK-24452-00	Cover	1
18	6K8-14591-10	Screw	3
19	6CB-24482-00	Gasket 1	1
20	63P-13716-00	Collar	4
21	6CB-13593-00	Damper	4
22	6CB-13907-12	Fuel Pump Complete	1
23	63P-13915-00	Filter	1
24	6CB-14985-00	Float	1
25	6CB-14546-00	Valve,Needle	1
26	6GR-24410-02	Fuel Pump Assembly	1
27	6CB-24492-00	Bush, Fuel Pump	2
28	6CB-24592-00	Bolt	2
29	6CB-24491-00	Bracket, Fuel Pump	1
30	6CB-14984-00	Gasket,FloatChamber	1
31	6KA-13132-00	Joint	1
32	6LH-1447B-00	Bushing 1	1
33	6AW-13781-00	Damper,Pump	1
34	6AW-13784-00	Cover,Pump	1
35	63P-14567-00	Screw	6
36	6P2-14386-00	Pin,Float	1
37	4SV-24453-00	Screw	1
38	98507-04008	Screw, Pan Head	1

Fig. 30VMAX Fuel Tank

REF	Part No.	Name	Qty
1	6YJ-W2420-J3	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	Cap Assembly	1
3	6Y1-24260-30	Fuel Meter Assembly	1
4	90157-05M19	Screw, Pan Head	4
5	6Y1-24329-00	Seal	4
6	6Y1-24268-01	Gasket, Fuel Meter	1
7	6YJ-24167-00	Strainer	1
8	6Y2-24306-57	Fuel Pipe Complete 1	1
9	6E5-24305-06	Fuel Pipe Joint Complete	1
10	93210-08287	O-ring	1
11	6Y2-24305-06	Fuel Pipe Joint Complete	1
12	93210-08287	O-ring	1
13	90445-13M25	Hose (L2050)	1
14	6E5-24351-51	Band 1	4
15	90445-13M24	Hose (L850)	1
16	6Y2-24360-60	Primer Pump Assembly	1

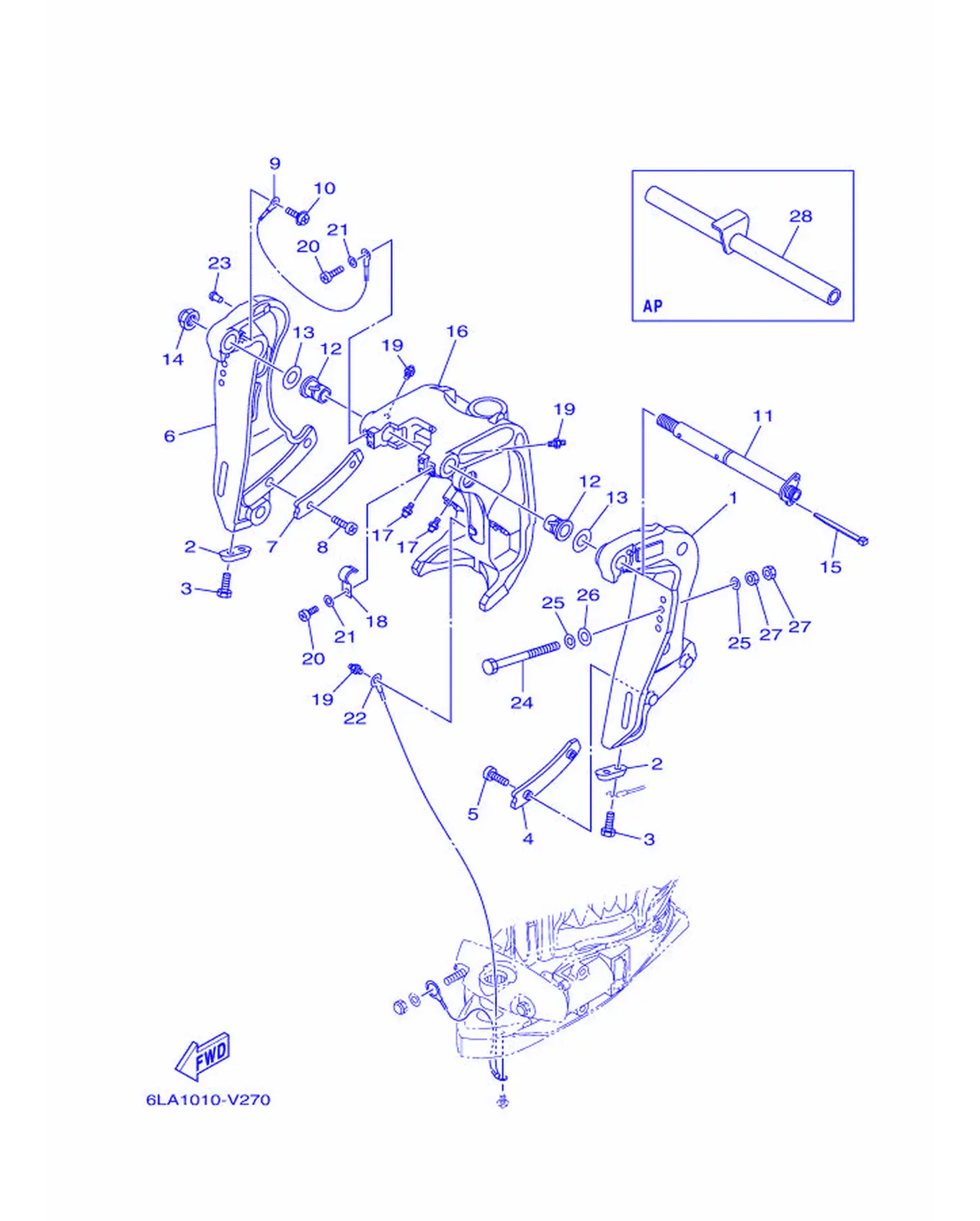

Fig. 31VMAX Bracket 1

REF	Part No.	Name	Qty
1	6CB-43111-10-8D	Bracket, Clamp 1	1
2	65W-45251-00	Anode	2
3	90101-06020	Bolt, Hexagon	4
4	61A-43132-01	Washer, Friction	1
5	97885-06010	Screw, Pan Head	2
6	6CB-43112-10-8D	Bracket, Clamp 2	1
7	61A-43133-01	Washer, Friction	1
8	97885-06010	Screw, Pan Head	2
9	6E5-82148-00	Wire,Lead 4	1
10	97985-06212	Screw, With Washer	1
11	64E-43131-30	Bolt,ClampBracket	1
12	90386-25M31	Bushing	2
13	90201-26M59	Washer,Plate	2
14	90185-22M11	Nut, Self-Locking	1
15	90465-11M10	Clamp	1
16	6KW-43311-00-8D	Bracket, Swivel 1	1
17	93700-06002	Nipple, Grease	2
18	90465-08M63	Clamp	1
19	93700-06002	Nipple, Grease	3
20	98504-06010	Screw, Pan Head	2
21	92903-06600	Washer,Plate	2
22	66K-82149-00	Wire,Lead 3	1
23	90269-02M08	Rivet	2
24	90101-12065	Bolt (L:130MM)	4
25	90201-13M01	Washer,Plate	8
26	90201-12426	Washer,Plate	4
27	95380-12600	Nut	8
28	6CB-43611-00	Shaft, Tilt Lock	1

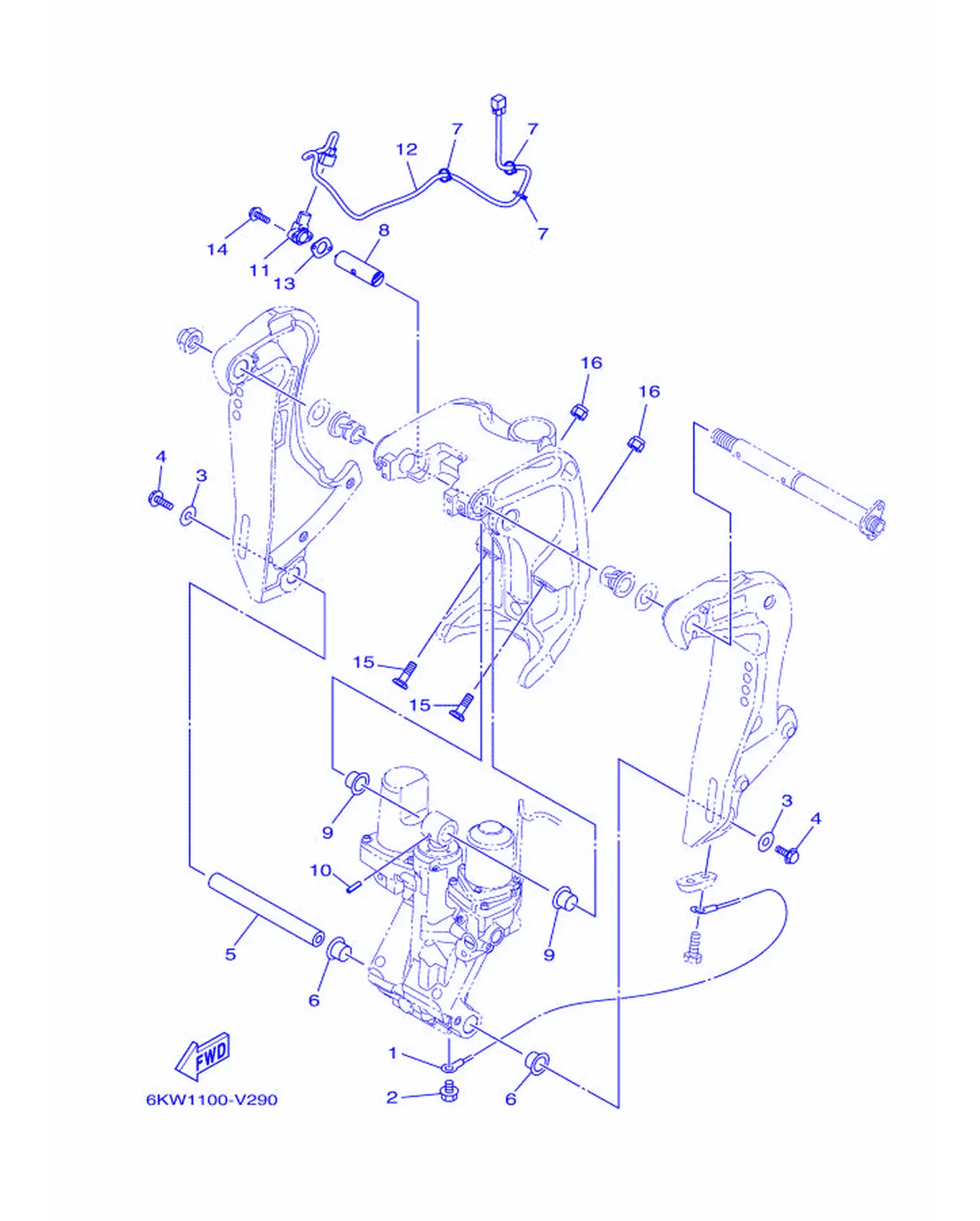

Fig. 32VMAX Bracket 2

REF	Part No.	Name	Qty
1	6E5-82148-00	Wire,Lead 4	1
2	97E95-06510	Bolt, Hexagon with Washer Deep Recess	1
3	90201-10060	Washer,Plate	2
4	90119-10054	Bolt, with Washer	2
5	6BC-43818-00	Pin, Lower Shock Mount	1
6	90386-22003	Bushing	2
7	90465-11M10	Clamp	3
8	6KW-43126-00	Pin, Upper Shock Mount	1
9	90386-22003	Bushing	2
10	91690-60022	Pin, Spring	1
11	6GR-85887-00	Sensor, Angle	1
12	6KW-82553-00	Extension, Wire Lead	1
13	6KW-4382A-00	Adapter 1	1
14	97595-05516	Bolt, with Washer	2
15	61A-43376-00	Bolt, Thrust Receiver	2
16	95780-10300	Nut, Flange	2

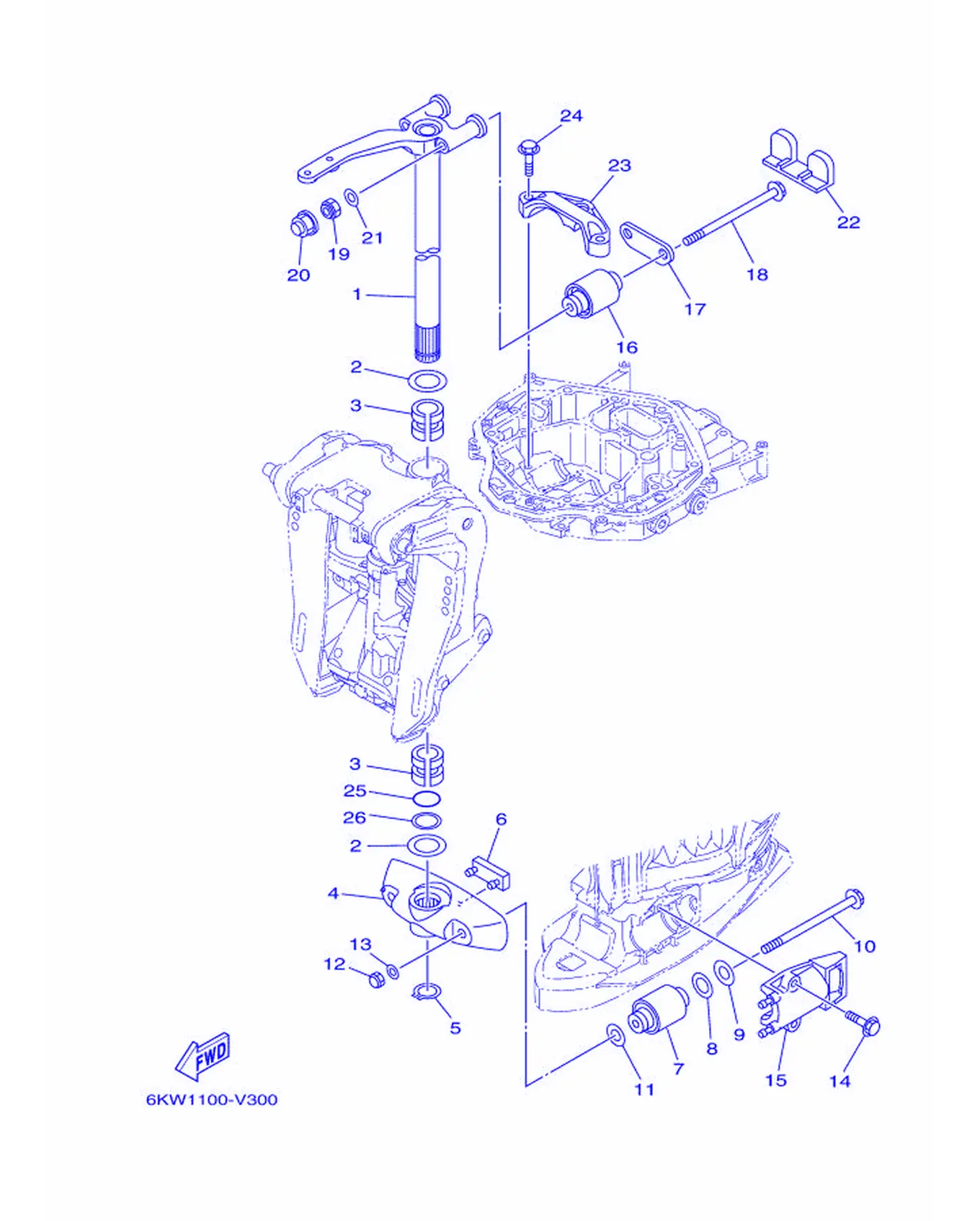

Fig. 33VMAX Bracket 3

REF	Part No.	Name	Qty
1	6CB-42510-00-8D	Steering Bracket Assembly	1
2	90201-38M60	Washer,Plate	2
3	90386-38M89	Bushing	2
4	6CB-44551-01-8D	Housing, Lower Mount Rubber 1	1
5	93410-36102	Circlip	1
6	6E5-44575-01	Damper, Lower Mount Rubber	1
7	60X-44555-00	Mount Damper, Lower Side	2
8	90202-32M19	Washer,Plate	2
9	90201-16M55	Washer,Plate	2
10	90105-14007	Bolt, Flange	2
11	90201-15M58	Washer,Plate	2
12	95380-14800	Nut	2
13	92995-14600	Washer	2
14	90119-10024	Bolt, With Washer	4
15	61A-44552-01-CA	Housing, Lower Mount Rubber 2	2
16	6CB-44514-00	Mount Damper, Upper Side	2
17	6CB-44526-00	Plate	1
18	90105-14007	Bolt, Flange	2
19	90185-14M00	Nut, Self-Locking	2
20	6DA-44194-00	Cap	2
21	92995-14600	Washer	2
22	6CB-44533-01	Damper, Upper Mount Rubber	1
23	6CB-44511-00	Cover, Upper Mount Rubber	1
24	90119-10024	Bolt, With Washer	3
25	93210-37MH7	O-ring	1
26	90202-40M47	Washer,Plate	1

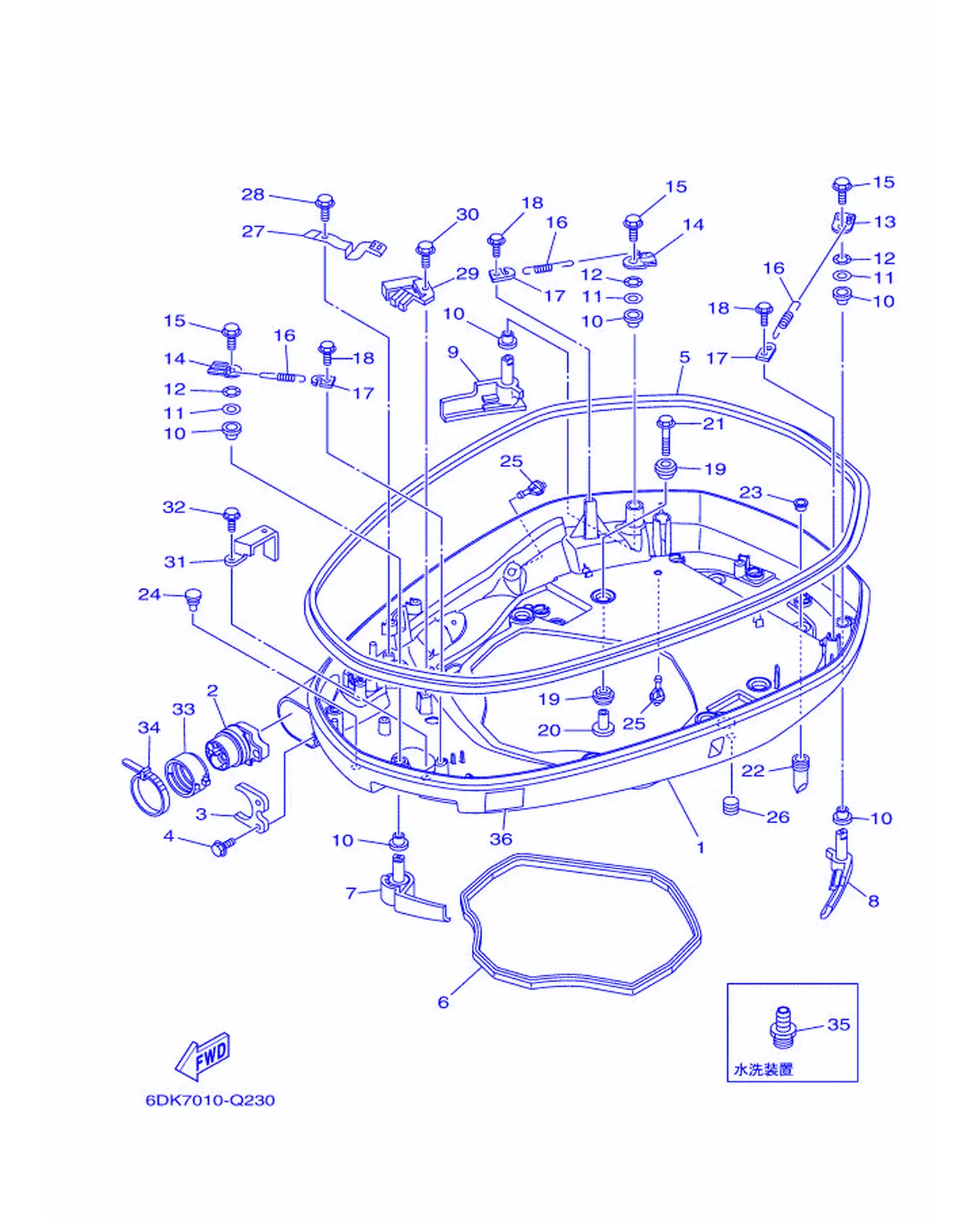

Fig. 34VMAX Bottom Cowling 1

REF	Part No.	Name	Qty
1	6CB-42710-00-8D	Bottom Cowling Assembly	1
2	6DA-42725-03	Grommet	1
3	6CB-42761-00	Stopper	1
4	95D95-06014	Bolt, Flange Deep Recess	2
5	6CB-42615-01	Seal	1
6	6CB-42716-01	Rubber Seal 1	1
7	6CB-42815-02-8D	Lever, Clamp 1	1
8	6CB-42816-02-8D	Lever, Clamp 2	1
9	6CB-42817-02-8D	Lever, Clamp 3	1
10	90386-15M73	Bushing	6
11	90201-156J2	Washer, Plate	3
12	90206-15M18	Washer, Wave	3
13	6CB-42818-00	Lever, Clamp 4	1
14	6CB-42819-00	Lever, Clamp 5	2
15	95D95-08012	Bolt, Flange Deep Recess	3
16	90506-22001	Spring, Tension	3
17	66T-43144-00	Hook,Spring	3
18	95D95-06012	Bolt, Flange Deep Recess	3
19	90480-22M81	Grommet	12
20	90387-08M37	Color	6
21	90119-08187	Bolt, with Washer	6
22	6DA-42717-01	Rubber, Seal 2	4
23	6DA-42384-00	Seal, Cap	4
24	6H4-42748-01	Grommet	1
25	6P2-44391-00	Nipple,Hose	2
26	90338-11007	Plug	2
27	6CB-42743-00	Bracket	1
28	95D95-06012	Bolt, Flange Deep Recess	1
29	6CB-42766-00	Bracket 2	1
30	95D95-06012	Bolt, Flange Deep Recess	1
31	6CB-42756-00	Stay, Clamp	1
32	95D95-06012	Bolt, Flange Deep Recess	1
33	68F-42753-00	Fastener	1
34	90464-20258	Clamp	1
35	69J-12584-00	Joint,Hose 3	1
36	6EE-42794-01	Label, Warning (General)	1

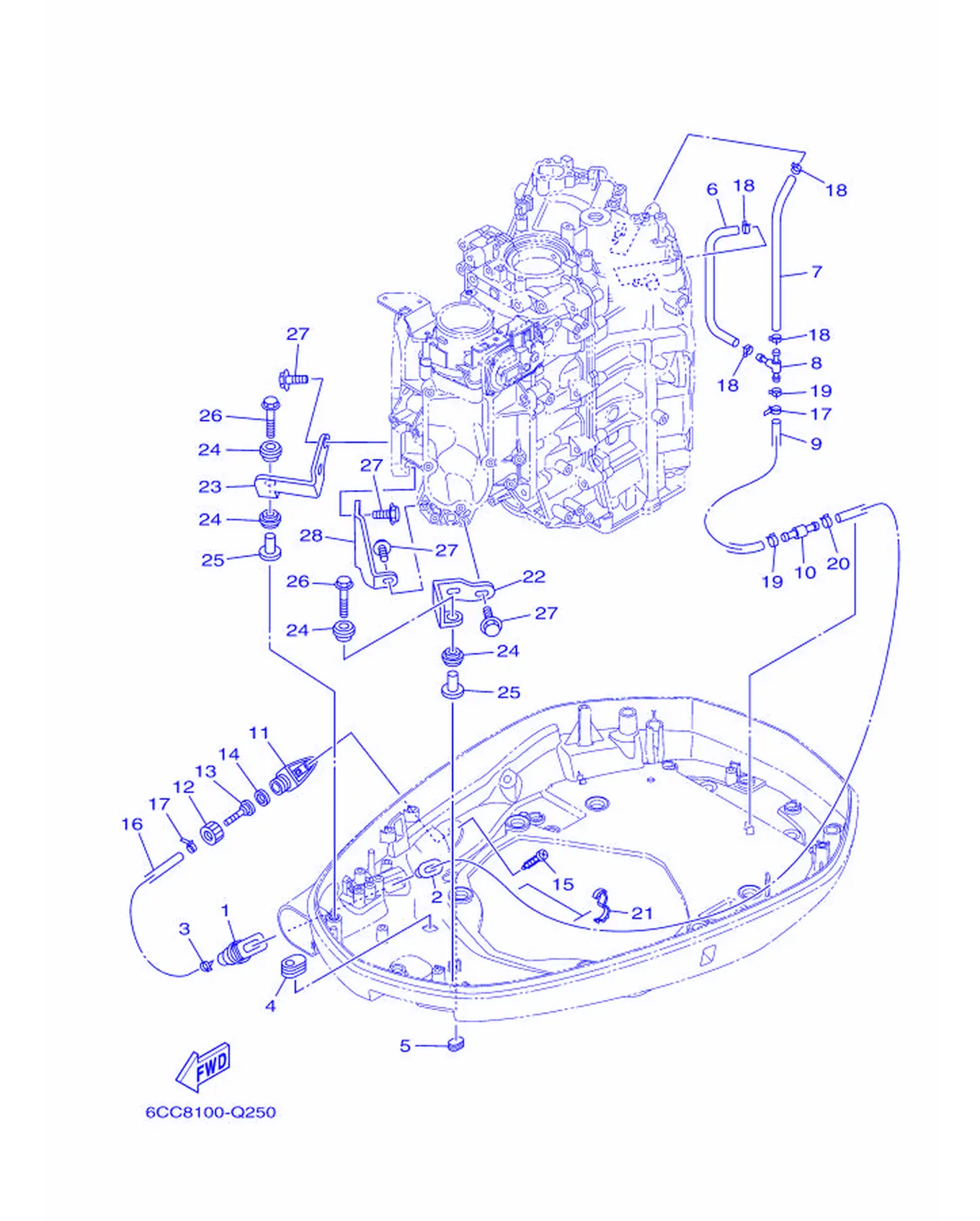

Fig. 35VMAX Bottom Cowling 2

REF	Part No.	Name	Qty
1	6BG-42724-01	Grommet	2
2	6BG-42384-00	Seal, Cap	2
3	90465-11M10	Clamp	2
4	61A-42727-01	Grommet	1
5	64G-42727-01	Grommet	1
6	6CB-24315-00	Pipe 5	1
7	90445-14021	Hose (L185)	1
8	6AW-42169-00	Joint	1
9	90445-16015	Hose (L300)	1
10	6AW-42785-00	Pipe	1
11	6AW-12572-00	Adapter	1
12	6R3-12581-00	Joint,Hose 1	1
13	6AW-12582-00	Joint, Hose 2	1
14	6R3-12583-00	Gasket,HoseJoint	1
15	97780-60520	Screw, Tapping	2
16	90445-14019	Hose (L1460)	1
17	90465-11M10	Clamp	2
18	90467-130A5	Clip	4
19	90467-140A8	Clip	2
20	90467-140A9	Clip	1
21	90464-16001	Clamp	2
22	6CB-42643-00	Plate, Clamp	1
23	6CB-42644-00	Clamp Plate 2	1
24	90480-14029	Grommet	4
25	90387-06M03	Color	2
26	90119-06291	Bolt, with Washer	2
27	90105-06039	Bolt, Flange	6
28	6CB-42744-00	Stay	1

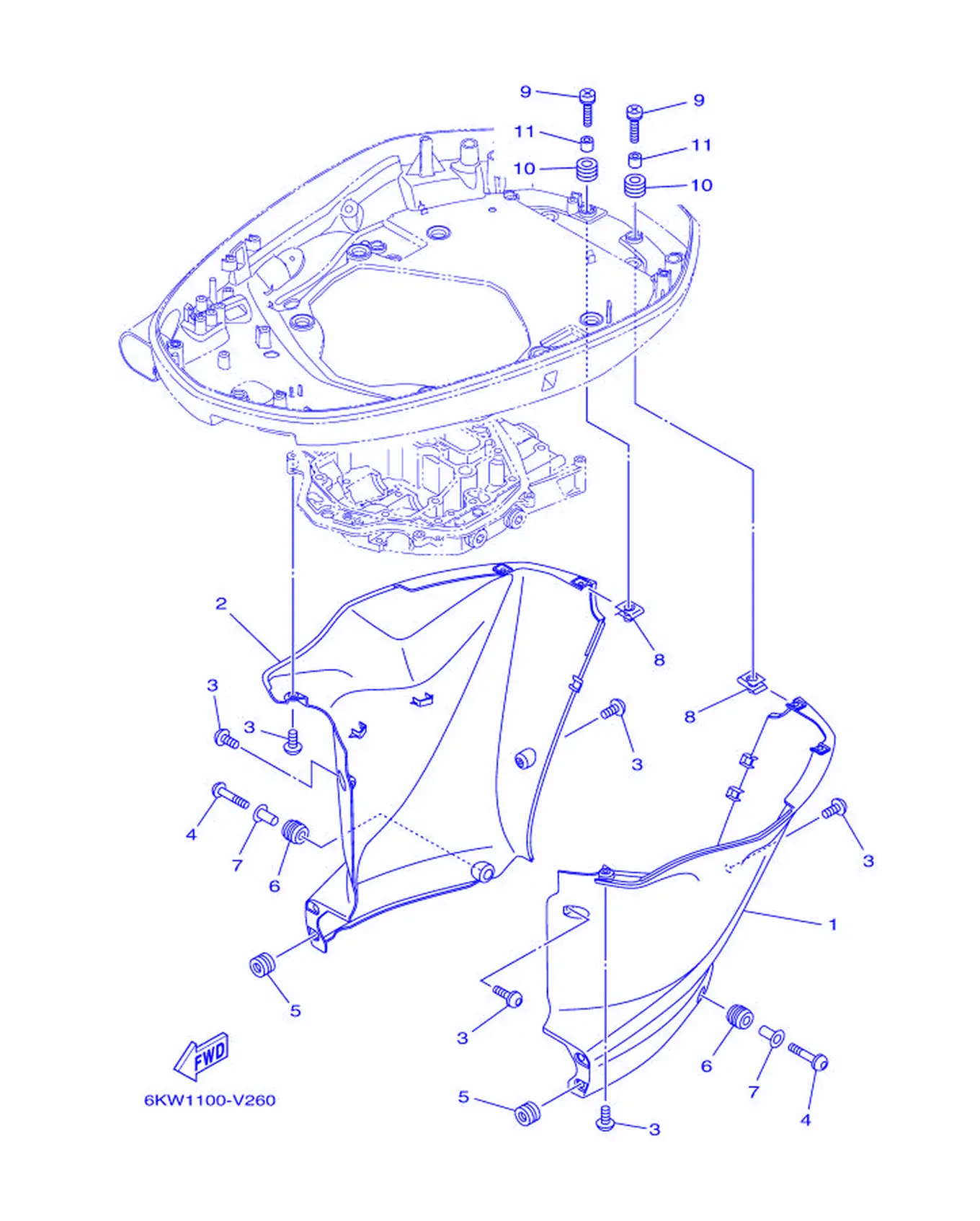

Fig. 36VMAX Bottom Cowling 3

REF	Part No.	Name	Qty
1	6KW-42740-00-8D	Apron Complete 1	1
2	6KW-42770-00-8D	Apron Complete 2	1
3	90111-06144	Bolt	6
4	90111-06142	Bolt	2
5	90480-11012	Grommet	4
6	90480-16009	Grommet	2
7	90387-07028	Collar	2
8	90183-061A8	Nut, Spring	4
9	90159-06053	Screw, Washer	4
10	90480-13M24	Grommet	4
11	90387-06M43	Color	4

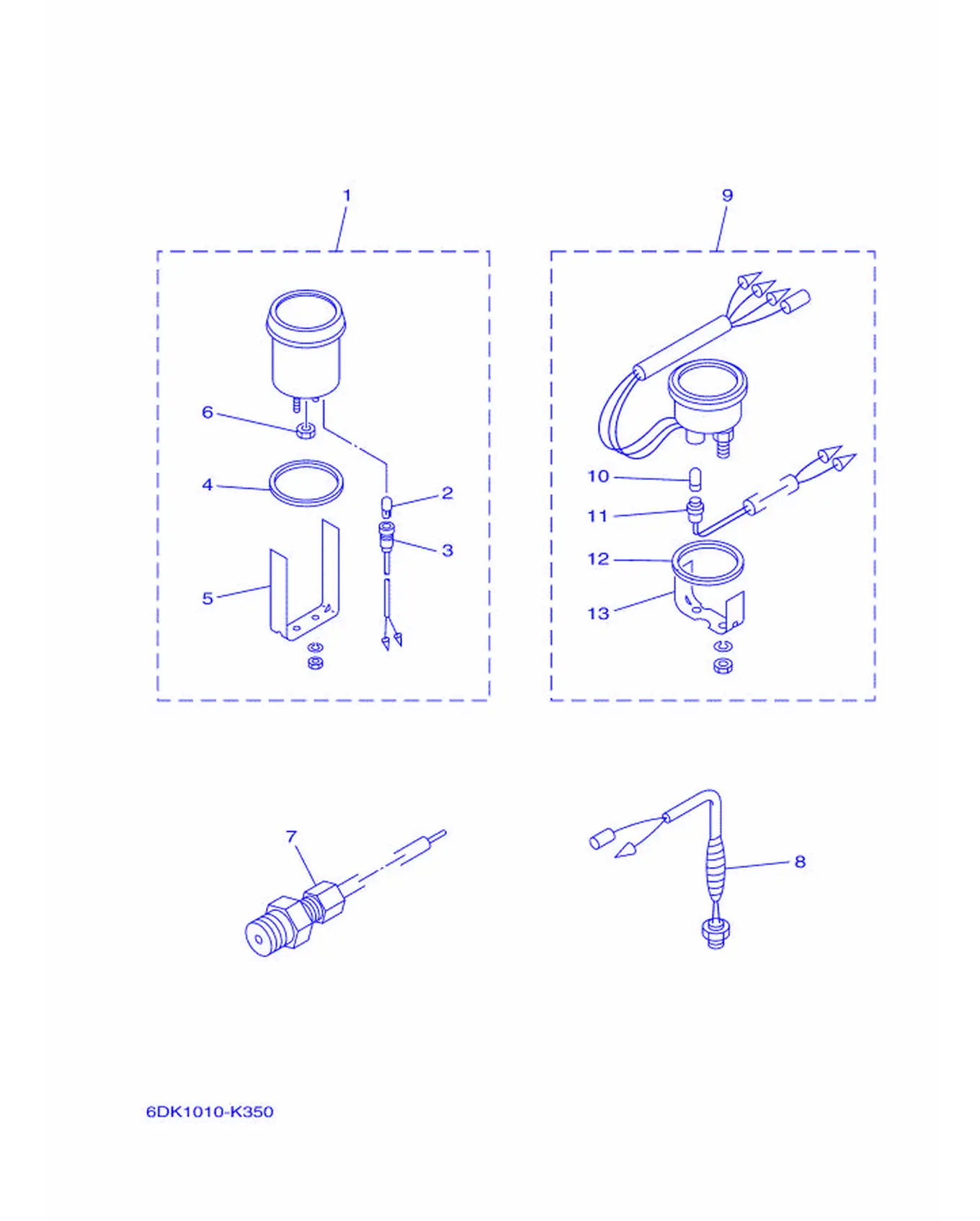

Fig. 37VMAX Meter

REF	Part No.	Name	Qty
1	6Y7-W8366-01	Water Pressure Meter Assembly	1
2	6Y5-83518-00	Valve (12V-1.7W, T6.5)	1
3	6Y5-83536-00	Socket, Meter	1
4	688-83664-00	Damper	1
5	688-83665-00	Plate, Fitting	1
6	663-83668-00	Nut, Nipple	1
7	688-83667-01	Sender	1
8	688-83591-00	Thermo Unit	1
9	6Y5-83590-02	Water Temperature Assembly	1
10	6Y5-83518-00	Valve (12V-1.7W, T6.5)	1
11	6Y5-83536-00	Socket, Meter	1
12	688-83664-00	Damper	1
13	6Y5-83544-00	Plate, Fitting	1

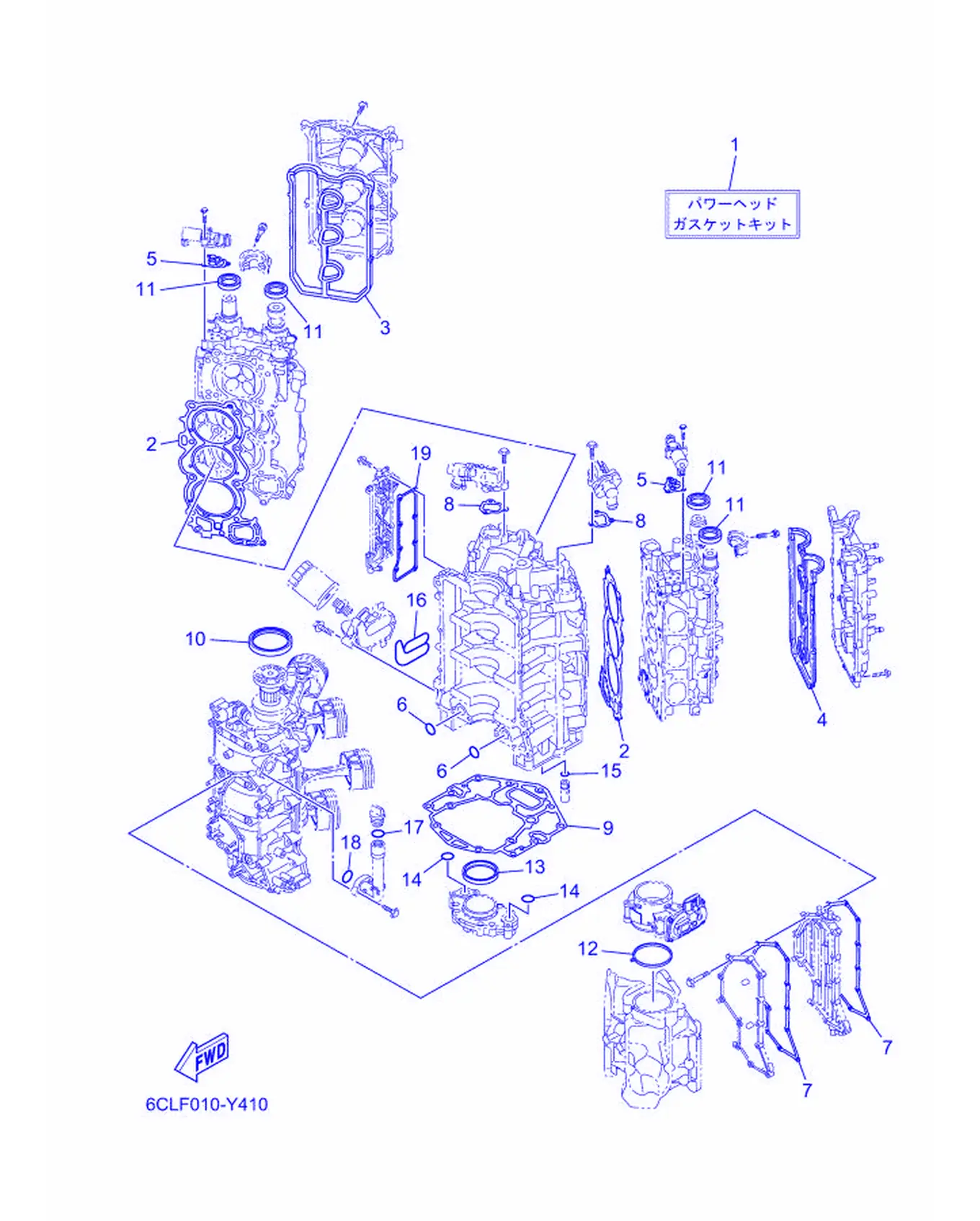

Fig. 38VMAX Repair Kit 1

REF	Part No.	Name	Qty
1	6CB-W0001-05	Power Head Gasket Kit	1
2	6CB-11181-00	Gasket, Cylinder Head 1	2
3	6CB-11193-00	Gasket, Head Cover 1	1
4	6CB-11194-00	Gasket, Head Cover 2	1
5	6CB-1242F-00	Gasket Filter	2
6	93210-26658	O-ring	2
7	6CB-15451-01	Gasket, Crankcase Cover	2
8	6CB-12427-11	Gasket, Housing Cover 1	2
9	6KA-11351-00	Gasket, Cylinder	1
10	93102-85008	Oil Seal	1
11	93102-38008	OilSeal	4
12	6CB-13556-00	Gasket, Manifold	1
13	6CB-11355-00	Seal, Cylinder 1	1
14	93210-26658	O-ring	2
15	6CB-13473-00	O-ring	1
16	6CB-13477-00	Gasket	1
17	93210-24M79	O-ring	1
18	93210-27370	O-ring	1
19	6ML-1131B-00	Gasket, Cover	1

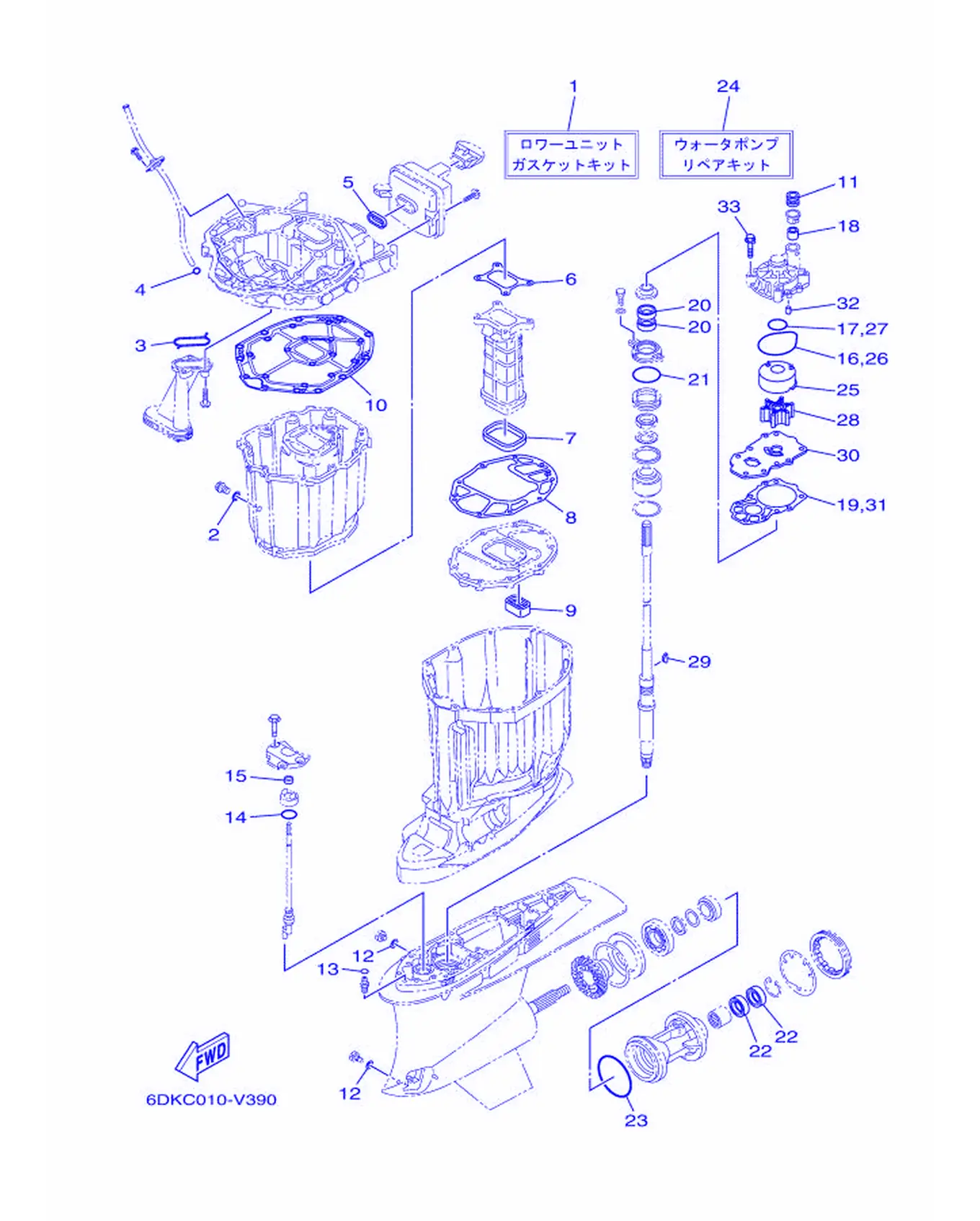

Fig. 39VMAX Repair Kit 2

REF	Part No.	Name	Qty
1	6CB-W0001-23	Lower Unit Gasket Kit	1
2	90430-14M09	Gasket	1
3	6AW-13415-00	Seal, Oil Strainer	1
4	93210-19MJ3	O-ring	1
5	6CB-14755-01	Gasket, Silencer	1
6	6CB-41134-00	Gasket, Exhaust Manifold 2	1
7	6CB-41138-00	Seal, Exhaust 1	1
8	6CB-41135-00	Gasket, Exhaust Manifold	1
9	6CB-45127-01	Seal	1
10	6CB-45113-10	Gasket, Upper Casing	1
11	6E5-44366-01	Damper, Water Seal 2	1
12	90430-08003	Gasket	2
13	93210-07003	O-ring	1
14	93210-33M49	O-ring	1
15	93106-09014	OilSeal	1
16	93210-86M38	O-ring	1
17	93210-37160	O-ring	1
18	6E5-44365-01	Damper, Water Seal 1	1
19	6CB-44315-00	Gasket, Water Pump	1
20	93101-28019	Oil Seal	2
21	93210-58144	O-ring	1
22	93101-30037	Oil Seal	2
23	93211-02001	O-ring	1
24	6CB-W0078-00	Water Pump Repair Kit	1
25	61A-44322-02	Insert, Cartridge	1
26	93210-86M38	O-ring	1
27	93210-37160	O-ring	1
28	6E5-44352-01	Impeller	1
29	90280-04002	Key, Withdraw	1
30	6CB-44323-00	Outlet Plate, Cartridge	1
31	6CB-44315-00	Gasket, Water Pump	1
32	93606-12019	Pin, Dowel	2
33	90119-08191	Bolt, with Washer	4

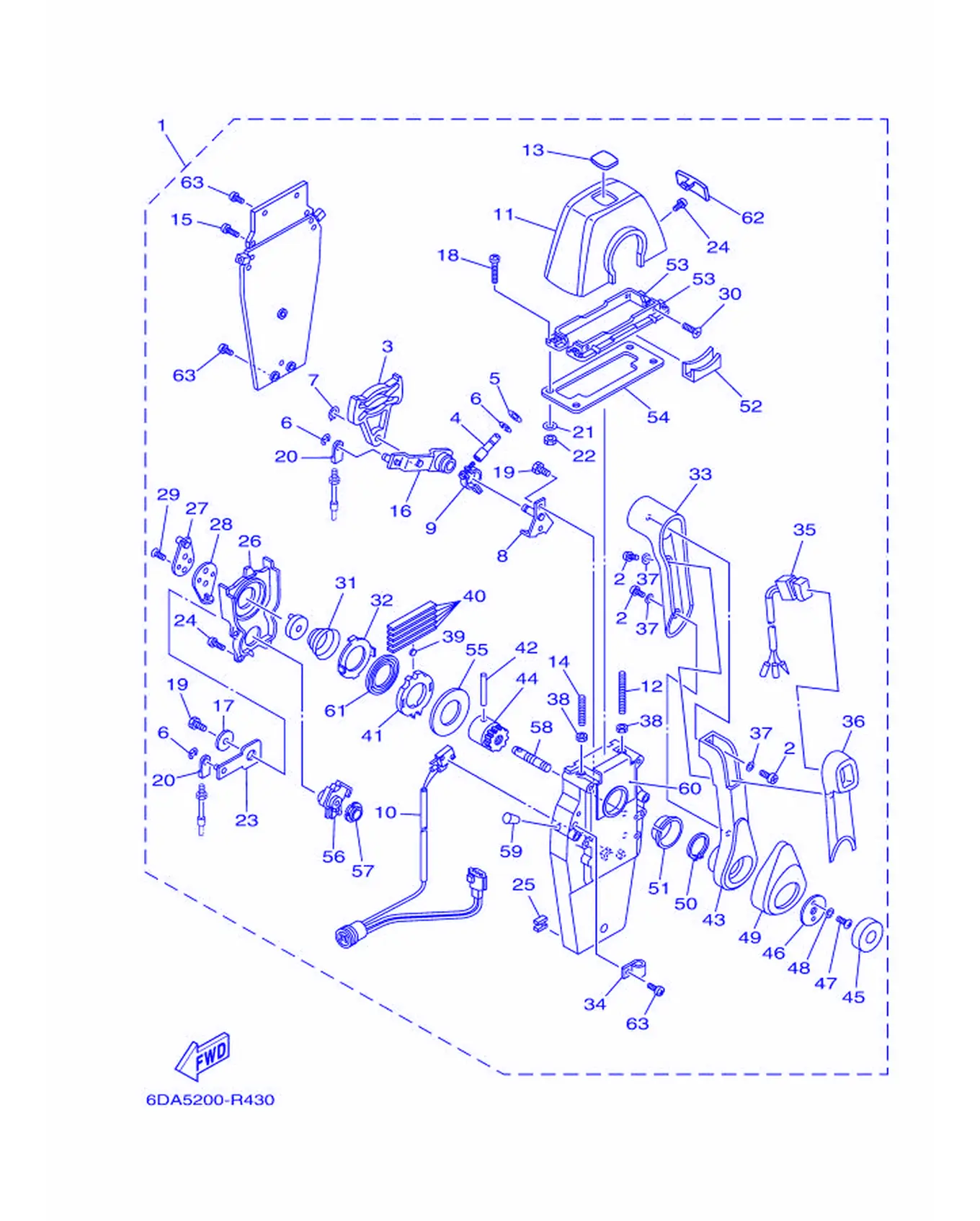

Fig. 40VMAX Remote Control Assembly

VMAX 遥控总成 VMAX Remote Control Assembly Fig.

REF	Part No.	Name	Qty
1	704-48205-R2	Remote Control Assembly (R/H)	1
2	704-48129-11	Screw 3	3
3	EL8-48251-00	Plate,Cam	1
4	704-48265-00	Shaft, Friction	1
5	701-48246-00	Spacer	1
6	93430-06024	Circlip	4
7	EL8-48259-00	Circlip 1	1
8	704-48262-00	Shaft,Throttle	1
9	704-48264-00	Throttle, Friction	1
10	704-82540-40	Neutral Switch Assembly	1
11	704-48119-50	Cover	1
12	EL8-48281-00	Screw	1
13	704-48215-61	Graphic	1
14	704-48281-00	Screw	1
15	97890-05025	Screw, Pan Head	2
16	704-48261-00	Arm,Throttle	1
17	EL8-48191-00	Washer 1	1
18	704-48283-00	Screw	4
19	97380-06018	Bolt	3
20	703-48345-01	Cable End, Remote Control	2
21	704-48287-00	Washer	4
22	95380-05600	Nut	4
23	704-48271-00	Arm, Shift	1
24	EL8-48127-00	Screw 1	10
25	703-48358-01	Anchor, Cable	1
26	704-48231-00	Housing, Cap	1
27	EL8-48241-00	Arm, Drive	1
28	EL8-48254-00	Stopper, Throttle	1
29	92780-06020	Screw, Flat Head	2
30	98780-05018	Screw, Flat Head	4
31	EL8-48244-00	Spring, Free Axel	1
32	EL8-48245-00	Plate, Lock	1
33	704-48222-10	Grip,ControlLever	1
34	704-82594-00	Clamp	1
35	704-82563-60	Trim & Tilt Switch Assembly	1
36	704-48229-30	Grip,ControlLever	1
37	92990-05300	Washer, Internal Tooth	3
38	95380-06600	Nut, Hexagon	2
39	701-48248-00	Roller, Free Accelerator	1
40	704-48238-00	Spring, Detent	5
41	704-48232-P1	Gear	1
42	EL8-48164-00	Pin 2	1
43	704-48221-R0	Lever, Control	1
44	704-48242-10	Shaft, Drive	1
45	704-48225-R0	Cover	1
46	704-48192-00	Washer 2	1
47	97890-06018	Screw, Pan Head	2
48	92990-06300	Washer, Internal Tooth	2
49	704-48224-R0	Cover,ControlLever	1
50	EL8-48279-00	Circlip 2	1
51	704-48234-00	Bushing 1	1
52	704-48219-R0	Cover,Lead	1
53	704-48144-10	Plate, Stopper 2	2
54	704-48176-01	Grommet	1
55	704-48192-P0	Washer 2	1
56	704-48233-00	Gear 2	1
57	704-48235-00	Bushing	1
58	704-48153-00	Shaft, Free Axel	1
59	704-48166-00	Plug	1
60	704-48284-P0	Grommet	1
61	704-48178-10	Plate, Shift	1
62	704-48167-20	Plug	1
63	97890-05016	Screw, Pan Head	3

Fig. 41VMAX Remote Control Box

REF	Part No.	Name	Qty
1	704-48205-R2	Remote Control Assembly (R/H)	1
2	701-48320-50	Cable, Remote Control	2
2	701-48320-60	Cable, Remote Control	2
2	701-48320-80	Cable, Remote Control	2
2	701-48350-00	Cable, Remote Control	2
2	701-48350-20	Cable, Remote Control	2

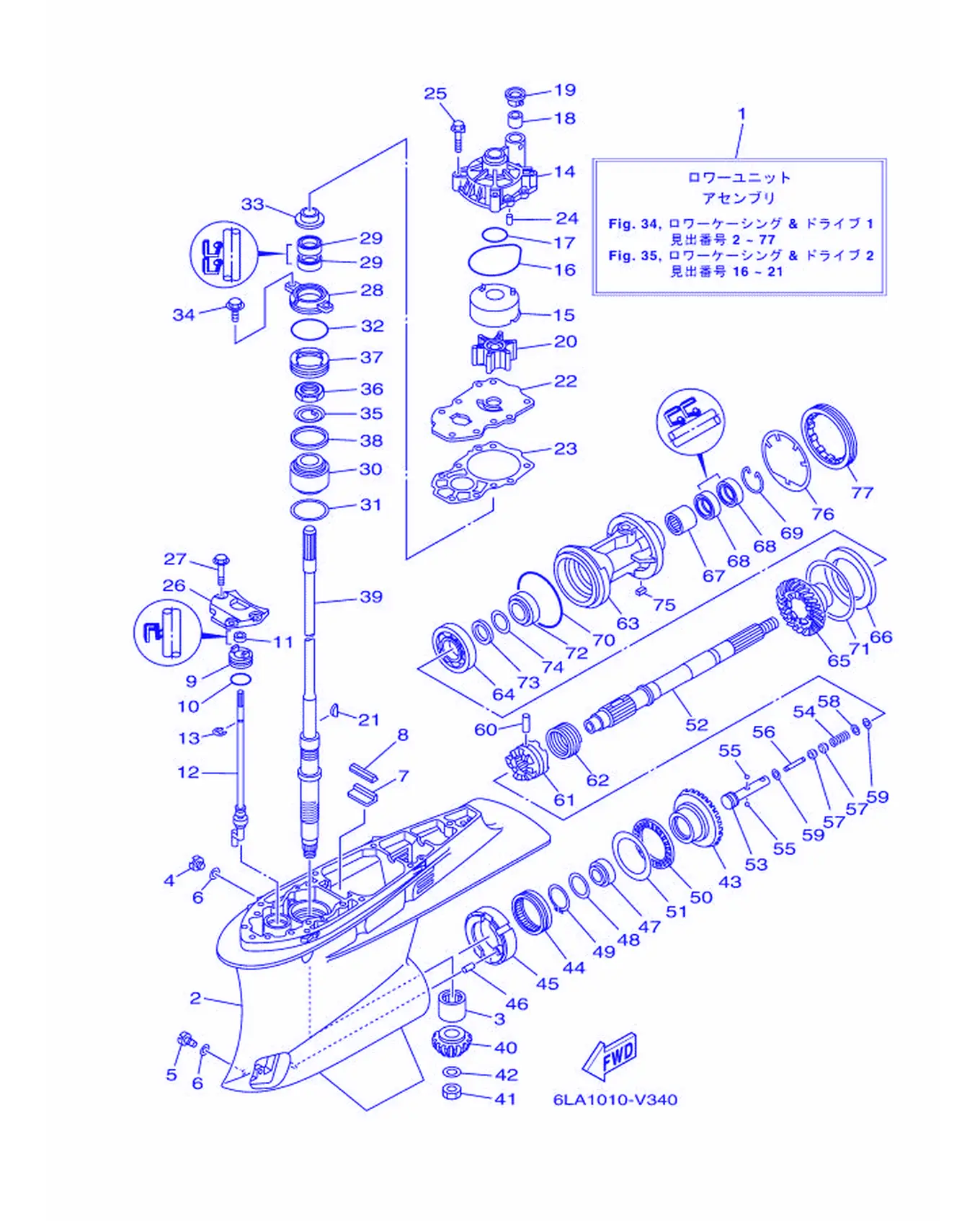

Fig. 42VMAX Lower Casing & Drive 1

VMAX 下部壳体与传动 1 VMAX Lower Casing & Drive 1 Fig.

REF	Part No.	Name	Qty
1	6CB-45300-04-NA	Lower Unit Assembly	1
2	6CB-45311-01-NA	Casing, Lower	1
3	93311-928U5	Bearing	1
4	90340-08002	Plug, Straight Screw	1
5	688-45341-10	Plug, Drain	1
6	90430-08003	Gasket	2
7	663-45376-00	Guide,SealDamper	1
8	688-45375-00	Damper,Seal	1
9	6CE-45321-10	Plate	1
10	93210-33M49	O-ring	1
11	93106-09014	OilSeal	1
12	6CB-44150-00	Shift Cam Assembly	1
13	99001-08600	Circlip	1
14	61A-44311-01	Housing,Water Pump	1
15	61A-44322-02	Insert, Cartridge	1
16	93210-86M38	O-ring	1
17	93210-37160	O-ring	1
18	6E5-44365-01	Damper, Water Seal 1	1
19	6E5-44312-00	Cover,Water PumpHousing	1
20	6E5-44352-01	Impeller	1
21	90280-04002	Key, Withdraw	1
22	6CB-44323-00	Outlet Plate, Cartridge	1
23	6CB-44315-00	Gasket, Water Pump	1
24	93606-12019	Pin, Dowel	2
25	90119-08191	Bolt, with Washer	4
26	6CB-44312-00	Cover, Water Pump Housing	1
27	90119-08180	Bolt, with Washer	3
28	6CB-45335-00-9S	Housing, Oil Seal	1
29	93101-28019	Oil Seal	2
30	93332-000A3	Bearing	1
31	6CB-45587-00	Shim (T:0.10MM)	1
31	6CB-45587-10	Shim (T:0.12MM)	1
31	6CB-45587-20	Shim (T:0.15MM)	1
31	6CB-45587-30	Shim (T:0.18MM)	1
31	6CB-45587-40	Shim (T:0.30MM)	1
31	6CB-45587-50	Shim (T:0.40MM)	1
31	6CB-45587-60	Shim (T:0.50MM)	1
32	93210-58144	O-ring	1
33	6E5-45344-00	Cover,OilSeal	1
34	97E95-08520	Bolt, Hexagon with Washer Deep Recess	2
35	90214-30003	Washer, Claw	1
36	90170-30M18	Nut	1
37	6CB-45244-00	Nut	1
38	6CB-45539-00	Spacer 2	1
39	6CB-45501-01	Drive Shaft Complete	1
40	6CB-45551-00	Pinion (12T)	1
41	90170-16M19	Nut	1
42	90201-16M00	Washer,Plate	1
43	6CB-45561-00	Gear 1 (12T)	1
44	93311-85894	Bearing	1
45	6CB-45824-00	Adapter	1
46	93608-16M16	Pin, Dowel	1
47	93332-000A4	Bearing	1
48	90201-41008	Washer, Plate	1
49	99009-47500	Circlip	1
50	93340-67011	Bearing	1
51	6CB-45567-00	Shim (T:2.00MM)	1
51	6CB-45567-10	Shim (T:2.03MM)	1
51	6CB-45567-20	Shim (T:2.06MM)	1
51	6CB-45567-30	Shim (T:2.09MM)	1
52	6CB-45611-00	Shaft, Propeller	1
53	6CB-45634-00	Slide, Shift	1
54	90501-10M77	Spring, Compression	1
55	93501-04011	Ball	2
56	6H1-45668-00	Shaft, Free	1
57	61A-45635-00	Plunger, Shift	2
58	90201-02M00	Washer,Plate	1
59	90183-02M03	Nut,Spring	2
60	90250-08M07	Pin, Straight	1
61	6CB-45631-00	Clutch, Dog	1
62	6E5-45633-01	Ring, Cross Pin	1
63	6CB-45332-00-CA	Housing, Bearing	1
64	93306-209U0	Bearing	1
65	6CB-45571-00	Gear 2 (21T)	1
66	6CB-45576-00	Washer, Thrust 2	1
67	93315-43061	Bearing	1
68	93101-30037	Oil Seal	2
69	93450-45M02	Circlip	1
70	93211-02001	O-ring	1
71	6CB-45577-00	Shim (T:0.10MM)	1
71	6CB-45577-10	Shim (T:0.12MM)	1
71	6CB-45577-20	Shim (T:0.15MM)	1
71	6CB-45577-30	Shim (T:0.18MM)	1
71	6CB-45577-40	Shim (T:0.30MM)	1
71	6CB-45577-50	Shim (T:0.40MM)	1
71	6CB-45577-60	Shim (T:0.50MM)	1
72	93332-000A5	Bearing	1
73	90201-32008	Washer, Plate	1
74	676-45567-00	Shim(T:0.7MM)	1
74	676-45567-10	Shim(T:0.8MM)	1
74	676-45567-20	Shim(T:0.9MM)	1
74	676-45567-30	Shim(T:1.0MM)	1
74	676-45567-40	Shim(T:1.1MM)	1
74	676-45567-50	Shim(T:1.2MM)	1
75	90282-05008	Key, Straight	1
76	6CB-45383-00	Washer, Claw	1
77	6CB-45384-00	Nut	1

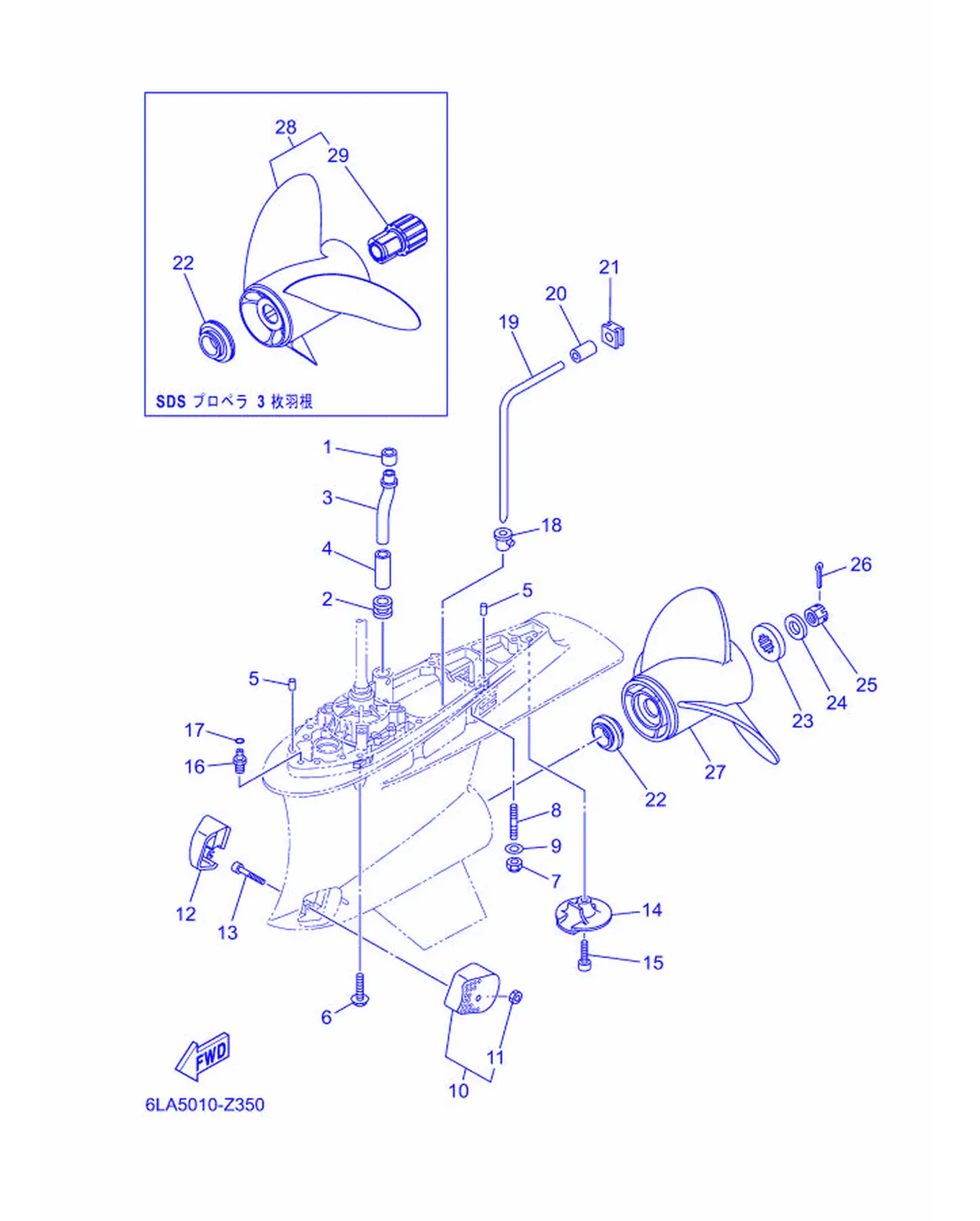

Fig. 43VMAX Lower Casing & Drive 2

VMAX 下部壳体与传动 2 VMAX Lower Casing & Drive 2 Fig.

REF	Part No.	Name	Qty
1	6E5-44365-01	Damper, Water Seal 1	1
2	6E5-44366-01	Damper, Water Seal 2	1
3	6CB-44361-00	Tube, Water 1	1
4	90445-23002	Hose (L59)	1
5	93608-16M16	Pin, Dowel	2
6	97E95-10545	Bolt, Hexagon with Washer Deep Recess	3
7	95780-10300	Nut, Flange	4
8	90116-10021	Bolt, Stud	4
9	92995-10600	Washer	4
10	6CB-45214-20	Cover, Water Inlet 1	1
11	90185-05002	Nut, Self-Locking	1
12	6CB-45215-20	Cover, Water Inlet 2	1
13	90110-05039	Bolt, Hexagon Socket Head	1
14	6AW-45619-00	Cap	1
15	90110-10018	Bolt, Hexagon Socket Head	1
16	63P-45378-00	Nipple,Hose	1
17	93210-07003	O-ring	1
18	6D0-44367-00	Damper, Water Seal 3	1
19	6CB-44362-00	Tube, Water 2	1
20	6D0-44365-00	Damper, Water Seal 1	1
21	6D0-44366-01	Damper, Water Seal 2	1
22	6KW-45987-00	Spacer 1	1
22	69J-45987-00	Spacer 1	1
23	688-45997-01	Spacer	1
24	92990-18200	Washer	1
25	90171-18M04	Nut, Castle	1
26	91490-40030	Pin, Cotter	1
27	6KW-45932-00	Propeller (3X15-1/8X22-T3)	1
27	6KW-45974-00	Propeller (3X15-1/8X23-T3)	1
27	6KW-45930-00	Propeller (3X15-1/8X24-T3)	1
28	6KA-45970-00	Propeller (3X15-1/4X18-T)	1
28	6KA-45972-00	Propeller (3X15-1/4X19-T)	1
28	6KA-45974-00	Propeller (3X15X20-T)	1
28	6KA-45976-00	Propeller (3X15X21-T)	1
29	6CE-45C81-10	Damper Rubber, Propeller 1	1
